ALCOPRO Alco Sensor VXL Universal Screener Breathalyzer System with Thermal Printer

The Alco-Sensor VXL Universal Screener with Thermal Printer is an economical Evidential Breath Testing device designed for use in law enforcement, corrections, probation and substance abuse treatment programs.



Evidential accuracy exceeds +/- .005 at .100 BrAC

Intuitive test menus prompt the operator through a test sequence, greatly reducing operator errors

Uses automatic breath sampling to ensure that each subject delivers an adequate breath sample, and then samples the breath at the optimum moment towards the end of the subjects exhalation

A manual over-ride feature allows the operator to capture a subject’s breath who has breathing difficulties or is uncooperative

Right or left-handed operation also allows operator to keep on hand free for ultimate flexibility

Passive test mode allows the operator to test multiple subjects quickly without using a mouthpiece. A subject blows into the sampling cup and the instrument displays a positive or negative result. Because the subjects mouth does not touch the sampling cup, the same sampling cup can be used repeatedly.

The robust memory on the Alco-Sensor VXL allows the operator to store and reprint thousands of test results

The optional Accelerator software program facilitates uploading of test results to a computer to create a database and reports of test results

Martel Thermal printer uses heat transfer for clean, smudge-free printing

Martel Thermal printer uses rechargeable batteries for portability

Hands-free testing, the Alco-Sensor VXL allows the operator to test subjects without being tethered to a printer

The printer docking station provides secure transmission of test results to the Martel Thermal printer



Alco-Sensor VXL Specifications

Specs

Sensor type Electrochemical oxidation (fuel cell)

Range of Measurement 0.00 – 0.440 BrAC

Accuracy and Precision US DOT approved for evidential use

Breath sampling Automatic with manual override

Response time 3 – 5 seconds for negative results, 5 10 seconds for positive results

Power requirement 4, AA batteries (included)

Test mode Direct and passive

Calibration Microprocessor controlled, using gas or simulator

Memory Thousands of tests

Print capability Yes, with docking station and serial printer

Computer capability Yes, with docking station and optional Accelerator software

Temperature range -5 degrees C to 50 degrees C

Size 7 x 3 x 2 1/8, 12 oz

Warranty One year, parts and labor

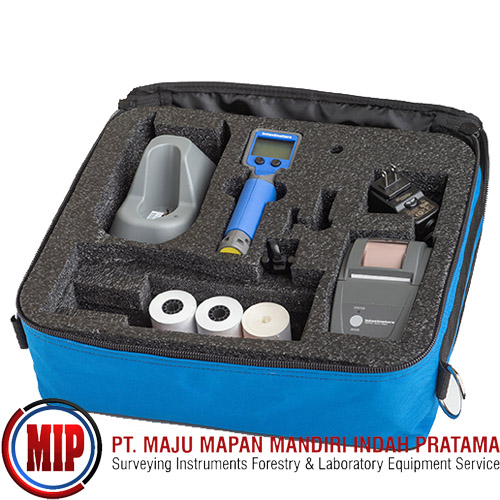

Alco-Sensor VXL Standard Product

Alco-Sensor VXL

Thermal Printer

Printer paper

Docking Station

100 mouthpieces

2 passive sampling cups

1 drink sniffer

nylon carrying case

manual
