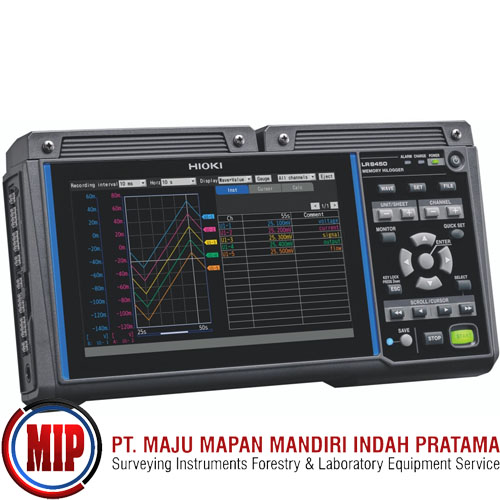

HIOKI LR8450 Memory Hi-Logger
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The LR8450 is a portable logger capable of measuring multiple channels of strain and voltage data. The LR8450 (standard model) and LR8450-01 (wireless LAN model) both boast a maximum sampling speed of 1 ms (1/1000 s), the fastest of any Hioki logger. Customers can choose from a selection of measurement units, including the Voltage/Temp Unit and the Strain Unit, according to their application. A single LR8450-01 can host up to 11 plug-in and wireless units to measure as many as 330 channels.
Development Background
Customers in the automotive and environment/alternative energy sectors, both of which Hioki has identified as priority markets, have embraced the legacy Memory HiLogger LR8400 series (max. 10 ms sampling), which can measure a large number of channels despite its compact size, and the popular Wireless Logging Station LR8410 (max. 100 ms sampling), which separates data measurement (by units) and collection (by the instrument).
Common themes appearing in feedback from LR8400 and LR8410 users included a desire to measure large numbers of channels more quickly in development of products such as electric vehicles (EVs), to measure strain on vehicle chassis and batteries along with temperature, and to reduce wiring man-hours and measurement issues by capturing strain data wirelessly.
Key Features
1. Sample a Large Number of Wired and Wireless Channels at Up to 1 ms
Customers need measurement solutions that are capable of accommodating abrupt changes in load in the development of electric vehicles such as EVs, hybrids (HVs), and plug-in hybrids (PHVs). By using the High Speed Voltage Unit U8553, a 5-channel plug-in unit that can measure voltage at a sampling rate of 1 ms, customers can capture such rapid changes.
The LR8450 series is ideal for capturing output data from sensors that measure low-frequency (from 10 to several dozens of hertz) data such as resin pressure or vibration, which are difficult to measure at conventional sampling speeds. The Wireless High Speed Voltage Unit LR8533, a 5-channel wireless unit, can measure voltage at a sampling rate of 1 ms. This sampling rate is 100 times faster than the LR8410 Wireless Logging Station.
Memory Hilogger (Standard Model, Main Unit Only)
A Single Solution for Dynamic Strain Measurement
Add Wired or Wireless Channels as You Need Them
Sample a Large Number of Wired and Wireless Channels at Up to 1 ms
