PCE BTM2000 Belt Tension Meter

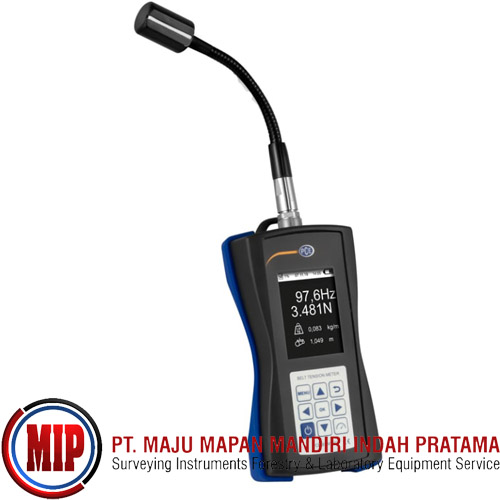

The belt tension meter is an optically measuring maintenance tool for determining the belt tension force. This belt tension meter consists of a display device and a sensor head attached to a semi-flexible gooseneck. The advantage of the gooseneck is that the sensor head can be flexibly positioned. Due to the mobility of the gooseneck, the sensor can measure the strand force even in hard-to-reach places. The belt tension measuring device measures the belt tension (in Newton) and the belt frequency (in Hz) of the belt in the stationary state.

A small impulse on the belt is sufficient to set the belt vibrating. The belt tension meter measures with the sensor the natural frequency of the belt generated in this way and visualize it on display. The belt tension meter can directly determine the actual tension (in Newton / Pound Force) of the belt from the belt frequency combined with the optionally entered belt length and mass. However, entering this data is not necessarily required to carry out the measurements directly with the belt tension measuring device. The measurement units in the device can be switched between N (SI unit) and pound-force (US unit).

PCE Instruments PCE-BTM 2000
Measuring range: 10 - 900 Hz
Accuracy: ± (1% of rdg. + 4 digits)
Measurement of the oscillation frequency of the drive belt
Intuitive controls
Calculation of the tension force

In The Box
(1x) Force Gage PCE-BTM 2000
(1x) Standard sensor head
(1x) Magnetic holder
(3x) 1.5 V AAA battery
(1x) Operating instructions.
(1x) Carrying bag
