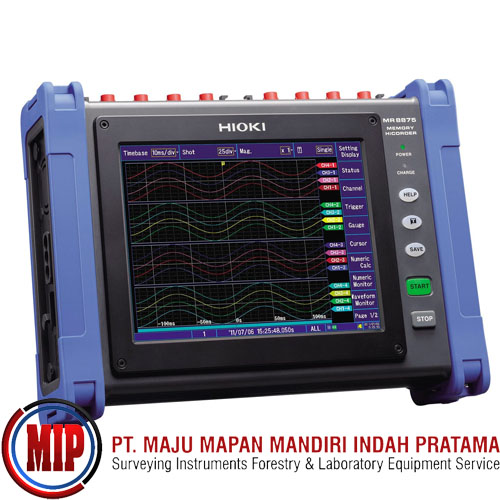

HIOKI MR8875 16-Channel Portable Memory HiCorder

Hioki MR8875 Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration and rotation due to complete isolation between channels and from each channel to the ground. The MR8875 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as onboard vehicle analysis, current consumption testing of portable devices, and measuring the voltage waveforms of superconducting materials and contacts.

Features:
1000V input and instantaneous DC or RMS waveform measurement with new Analog Unit MR8905
Measure multiple channels simultaneously despite handheld portable design
Max. 2 μsec high-speed simultaneous logging for all input channels
Save directly to the SD Card in real time for uninterrupted long-term logging
16-bit high-resolution measurement of voltage, temperature, distortion and CAN signals
FFT calculation, waveform calculation functions for advanced analysis
Intuitive touch screen for optimal operability
Tough against vibrations and extreme temperatures, with strengthened body ideal for in-vehicle testing and road tests
3 different power supplies

What's In The Box:
(1) Instruction manual
(1) Measurement guide
(1) AC adapter Z1002
(1) Protection sheet
(1) USB cable
(1) Shoulder strap
(1) Application disk (Wave viewer Wv, communication commands table, CAN Editor)
