DRUCK ADTS542F Air Data Test Set

Rp. 385,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

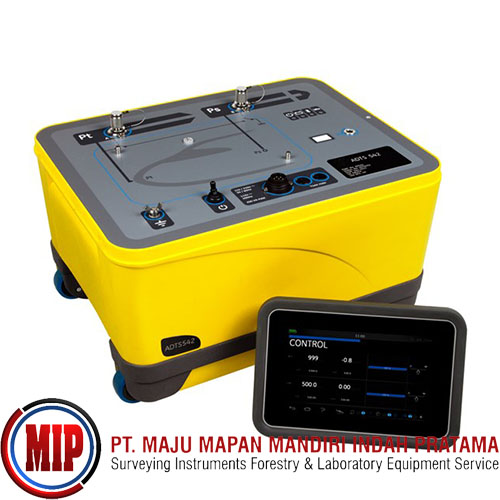

The Druck ADTS542F Air Data Test Set is a small, lightweight and cost-effective portable two-channel flightline pitot static tester for ‘Aircraft on the Ramp' testing. The ADTS542F is also ideal for any aircraft with low pitot static volume demands or for light aircraft, including helicopters and propeller-driven airplanes. It provides pitot static air data validation, leak testing, fault finding and avionics instrumentation testing.

To ensure an accuracy that is suitable for RVSM (reduced vertical separation minimum) validation, the new ADTS542F incorporates advanced Druck TERPS (trench etched resonant pressure sensor) technology together with innovative Druck proportional pressure control.

The ADTS Touch is a removable, robust wireless hand terminal that communicates to the test set via secure Bluetooth® wireless technology. This technology and the innovative design of the ADTS Touch remove the need to run cables or hoses into the cockpit.

Features
ADTS Touch hand terminal with WiFi & Bluetooth
Swipe–action, touch screen user interface
Standard icons and layouts for routine testing
TERPS high accuracy pressure sensors inside
Accuracy suitable for RVSM validation
Low airspeed option
12 or 15 month calibration interval
Engine Pressure Ratio (EPR) option
Stores customized aircraft test sequences
-3,000 to 55,000ft altitude operating range
Static pressure range of 91 to 1,130 mbar abs
32 to 122°F (0 to 50°C) operating temp
0 to 95% non-condensing RH range
