SEXTANT GLH130-40 Marine Compass

Rp. 35,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Measuring object and water, the angle between the antenna - celestial observation height and the horizontal angle between two objects and a single standard scale height of the vertical angle property.

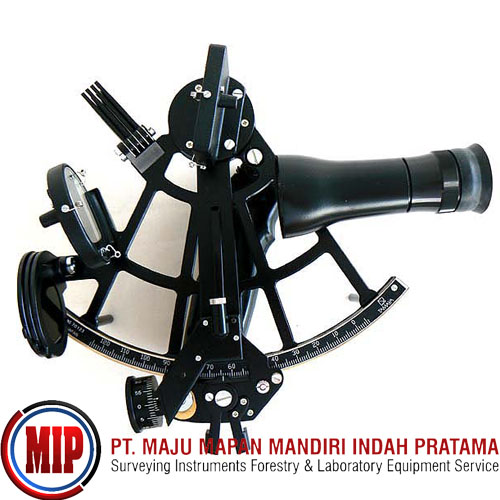

Sextant is a precision angle measuring instrument, which consists of frame, optical systems and devices, angular reading of three major parts. Optical system including the telescope, moving mirrors, fixed mirrors and filters, etc.; angle reading device partakers degree arc, index rods, vernier drum wheel and so on. These components are installed in the aircraft body, and through the indicator lever? Angle optical system and reading devices connected into a whole. Sextant is based on geometric " triangle exterior angle is equal to the angles and the two are not adjacent, " " parallel lines alternate angles are equal " , " central angle of the arc it can be used to measure the distance " and other principles of measuring angles.PREFIX = O

Basic parameters
Measuring range: -5~ + 130
Accuracy: GLH130-40 ----40Arcsec
Identification rate: 8.75Arcsec
Telescope: Magnification: 3.5X Field: 5
Through optical lens diameter: 40Mm
Exit pupil diameter: 11Mm
Lighting Voltage: 3V
Operating temperature range: -30~ 50
