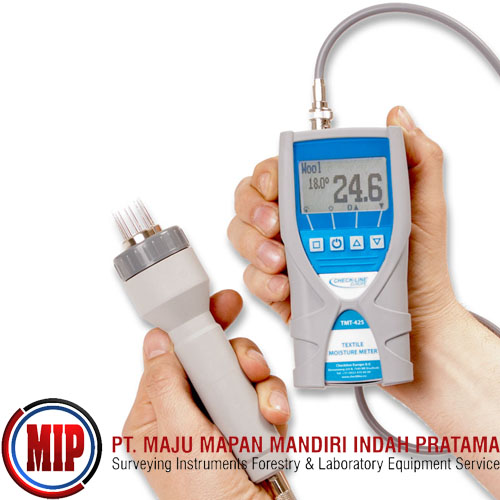

CHECKLINE TMT425-USB Digital Textile Moisture Meter
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The new digital textile moisture meter TMT-425 is the next generation of textile moisture meters. It determines the moisture content of textiles, natural materials, synthetics and yarn during the production process within seconds. The water content of textiles and yarns influences the elasticity and tensile strength directly.
This textile moisture tester has all textile curves stored inside and does not require any look up tables. Just select the appropriate moisture curve and start measuring. By this, maximum accuracy is guaranteed.
Features
Wide measuring range of 0.3% to 26% moisture content
Many stored curves for determining humidity in textile, natural and synthetic fabrics and yarns.
Automatically calculates average measurement values
Automatic temperature compensation
Memory Enables quality control and documentation on location
Menu languages: German, English, French, Italian, Spanish and Russian
No conversion tables needed!
Calibration Curves
The TMT-425 is calibrated to the following textile types:
- Acetate
- Acrylic
- Hemp yarn
- Jute Yarn
- Cotton
- Nylon
- Polyester
- Viscose
- Flax
- Wool
Specifications
Measuring Range 0.3% to 26% moisture content
Resolution 0.1%
Measuring Technique Electrical Resistance
Menu Languages English, German, French, Italian, Spanish and Russian
Housing Meter: Plastic with IP40 classification
Data Recording 10,000 measurements with date, batch and temperature
Display Grafic LCD display with backlight (128 x 64 pixels)
Temperature Automatically in °C or °F using a built-in temperature probe
Operating Temperature 0 °C to 40 °C
Storage Temperature -20 °C to 60 °C
Power Supply 4 x 1.5 Volt AA Alkaline Batteries
Data transfer (only for TMT-425-USB) Via USB-port (supplied with USB cable and software)
Dimensions 740 x 65 x 40 mm
Weight 450 gr. including batteries
The TMT-425 Textile Moisture Meter will be delivered as a complete set, including:
- TMT-425 Textile Moisture Meter
- Connecting Cable 200
- Electrode Holder 204
- Electrode 205
- Electrode 207
- Batteries
- Carrying Case
