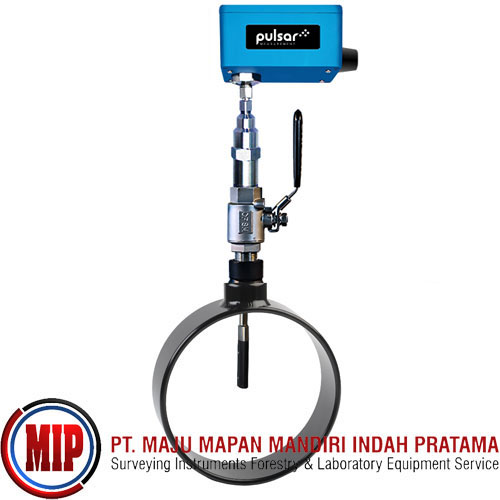

PULSAR ISM 5.0 Insertion Electromagnetic Flowmeter

Rp. 85,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The ISM 5.0 Electromagnetic Flow Meter is an accurate, low-cost insertion mag flow meter alternative to full-bore mag flow meters. Measure the flow of water and conductive liquids in full pipes from 80 mm to 1800 mm (3 in to 72 in) diameter.

The ISM 5.0 dual pair electrode sensor inserts through a tap in the pipe wall. It can be easily installed in new pipe systems or by a hot tap in pressurized pipes with flowing liquids. There are no moving parts so obstruction to flow and pressure drop is minimal. Installation through a full port ball valve allows easy retraction and reinsertion without shutting down flow. The dual-electrode sensor and continuous auto-zero function provide high accuracy – even at low flow rates. State-of-the-art electronics and patented design features help maintain its NIST traceable accuracy over time.

Features:

Electromagnetic with no moving parts

Simplified hot tap insertion design

Installs in 80 mm - 1800 mm (3 in - 72 in) diameter pipes

Selectable 4-20 mA, 0-5 V or 0-10 V output

0-500 Hz frequency output

Scalable pulse output

General Specifications

Spec name: Description:

Flow Measurement Range 0.031 m/s to 6.2 m/s (0.1 ft/s to 20 ft/s), 200:1 turndown

Approvals NSF 61 and 372

Accuracy ±1.0% of reading from 0.61 m/s to 6.2 m/s (2 ft/s to 20 ft/s)

±0.0061 m/s (0.2 ft/s) below 0.61 m/s (2 ft/s)

Nominal Pipe Size DN 75 mm to 1800 mm (3 in to 72 in D)

Liquid Temperature Range -26 °C to 121 °C (-15 °F to 250 °F)

Operating Temperature (Electronics) -28 °C to 65 °C (-20 °F to 150 °F)

Maximum Operating Pressure 14 bar (200 psi)

Pressure Drop Less than 0.007 bar (0.1 psi) at 3.65 m/s (12 ft/s)

Conductivity Range 20 to 60,000 μSiemens/cm

Power Input 20-28 V DC, 250 mA at 24VDC (6 W)

20-28 V AC, 50/60 Hz, 8 VA

Analog Output Selectable 4-20 mA 0-5 V or 0-10 V

Frequency Output 0-15 V peak pulse, 0-500 Hz

Scalable Pulse Output Isolated solid state dry contact rated 50 V DC, 100 mA maximum

Pulse duration: 0.5 sec, 1 sec, 2 sec, or 6 sec

Signal Cable Length 7.6 m (25 ft) PVC jacketed multi-conductor

Electronics Enclosure IP 68 powder-coated cast aluminum

Wetted materials 316L stainless steel, polypropylene

Approximate Shipping Weight 2.75 kg (6 lbs)
