BADGER METER Dynasonics TFX500W Ultrasonic Flow Meter
Rp. 185,000,000
NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

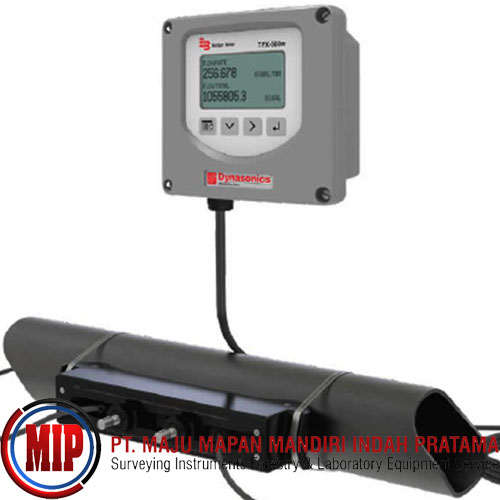

The Dynasonics TFX-500w ultrasonic flow meter measures volumetric flow of clean water in pipes 10 in. or smaller. This versatile and accurate meter clamps on to the outside of pipes and does not contact the internal liquid which reduces installation and maintenance time and cost. The TFX-500w is available in a variety of configurations that permit the user to select a meter with features suitable to meet particular application requirements. These features make the Dynasonics TFX-500w ideal for building automation, water distribution and wastewater collection in new and retrofit applications.
The TFX-500w has a wide, bi-directional measuring range that ensures reliable readings even at very low and high flow rates. For pipe/tubing sizes of 2" and lower, the TFX-500w includes clamp-on transducers mounted and wired directly to the flow meter electronics enclosure. This design provides a convenient installation in areas where the user requires local indication. The TFX-500w is also available with remote mounted transducers that permit separation of up to 300 feet. This design is utilized when pipes are located in areas that are not convenient for viewing, or on piping systems with severe vibration. This Dynasonics flow meter features a NEMA 4X, IP66 polycarbonate enclosure, optional easy-to-read digital display, bi-directional flow measurement, and a totalizer featuring forward, reverse and net total, and Modbus communications.
The TFX-500w meter is well suited for building automation, water distribution and wastewater collection in new and retrofit applications. In addition to having lower installation costs than an inline flow meter, the TFX-500w meter can be installed while the system continues to operate without interruption.
T
he TFX-500w meter is suitable for:
Potable water
Reclaimed water
Chiller water
Boiler feed
Make-up water
Condenser water
Condensate
Features:
Measures clean liquids and those with small amounts of suspended solids or aeration
Bi-directional flow measurement system
Totalizer with remote reset
Modbus RTU or BACnet MS/TP over RS485 and
BEACON®/AquaCUE® connectivity
NEMA 4X, IP66 polycarbonate enclosure
Clamp-on sensor design for reduced installation time
No moving parts reduces maintenance
0-20 and 4-20mA analog outputs
USB, type mini-B configuration port
Large, easy-to-read digital display (optional)
Certified for hazardous area installation in North America and Europe (optional)
What's In The Box:
(1) Screwdrivers, wide blade and tiny blade (for securing wires to the terminal blocks)
(1) User manual for the transducers
(4) #8 or M4 screws, if mounting the transmitter on a wall
(1) Stainless steel banding straps, if mounting the transmitter on a pipe
