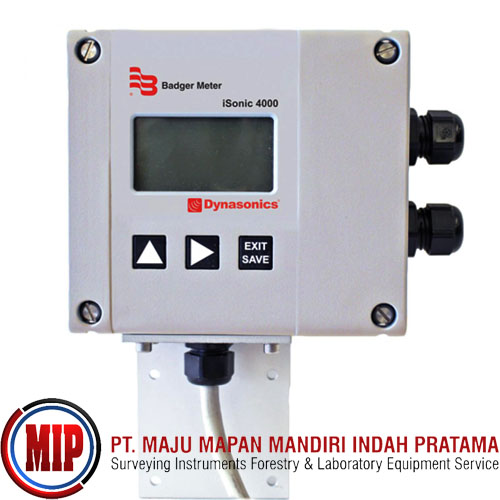

BADGER METER Dynasonics iSonic 4000 Open Channel Flow Meter

Rp. 115,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The Dynasonics iSonic 4000 open channel flow meter offers an economical solution to measuring level, flow rate and total volume of water flowing through unpressurized weirs and flumes. Using empirical formulas, the iSonic 4000 calculates the flow rate based on the geometry of the channel or primary element and water depth. The level sensor measures the depth of the water used in the calculation. For added ease of installation, this Dynasonics flow meter includes a selection of primary elements with pre-programmed tables including Parshall flumes, manhole flumes and V-notch weirs.

Typical applications for the Dynasonics iSonic 4000 open channel flow meter include flow into water treatment plants from reservoirs, storm and sanitary sewer systems, effluent from water resource recovery or wastewater treatment, industrial discharge and agriculture irrigation channels. Dynasonics' Flow Meter Tool software allows users to enter custom tables making the iSonic 4000 an ideal fit for custom applications. Additional features include a historical log of all measurements, the ability to connect to SCADA systems with Modbus RTU and a rugged IP67 powder coated aluminum enclosure.

Features:

Measure level, flow rate and total volume with a single device

Simple setup for flumes and weirs

Retain a historical log of all measurements

Easily connect to SCADA systems with Modbus RTU

Rugged IP67 powder coated aluminum enclosure

Sensors

0 to 49.21 in. (0 to 1250mm) measuring range

2 in. (50mm) offset

2 in. (50mm) beam width

PVDF material

0.125 in. (3mm) accuracy

2 in. (50mm) deadband

What's In The Box:

(1) iSonic 4000 transmitter

(1) Level sensor with 32 ft. (10 m) cable

(1) USB cable

(1) Flow Meter Tool configuration software
