PULSAR GREYLINE PTFM 6.1 Ultrasonic Flow Meter

Rp. 185,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The Greyline Instruments PTFM 6.1 ultrasonic flow meter is a transit-time flow meter designed for challenging flow applications in industrial environments. The PTFM 6.1 can be easily deployed due to it's portability and intuitive interface and setup.

The PTFM 6.1 is often used to measure the flow of clean fluids like water, chemicals, and oils from the outside of the pipe. The transducers can be mounted on metal or plastic pipes including carbon steel, stainless steel, ductile iron, cast iron, PVC, PVDF, fiberglass, copper, brass, aluminum, and pipes with bonded liners such as epoxy, rubber, or Teflon.

Configuration and start-up can be accomplished quickly utilizing the built-in 5-button keypad to enter the transducer type, pipe material and OD, wall thickness, and fluid type. The PTFM 6.1 will display the correct transducer separation distance. All the user has to do is secure the pipe clamps and align the mounting brackets on the outside of the pipe, prepare the transducers with the included coupling compound, and insert them into the brackets. The PTFM 6.1 will immediately begin to display, transmit, and totalize flow. The on-screen diagnostics and signal waveforms provide instant validation that your meter is performing accurately.

Transducer Options:
SE16A: 0.5 to 6in pipe, 2.56 MHz operating frequency
SE16B: 2 to 48in pipe, 1.28 MHz operating frequency
SE16C: 4 to 48in pipe, 640 kHz operating frequency

Features
±0.03 to 12.2m/s (±0.1 to 40ft/s) velocity range
±1% of reading or ±0.0046m/s (±1.5ft/s) accuracy
±0.25% repeatability and linearity
-20 to 60°C (-5 to 140°F) operating temperature
5-button keypad interface
2.8in color TFT LCD display
Rechargeable li-ion battery (up to 15 hours of operation)
Includes Greyline logger software for Windows
IP67 rated

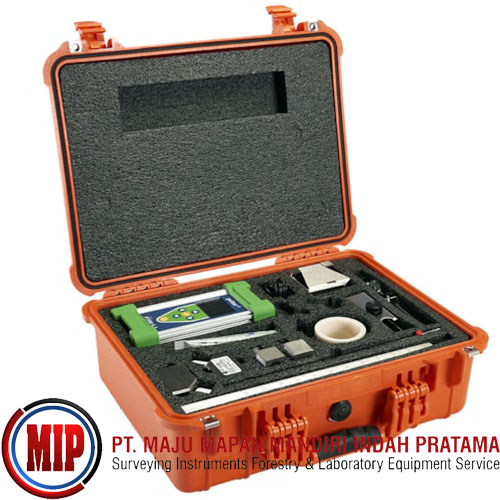

What's in the Box
Transducers and mounting hardware (based on selected configuration)
Transducer cables: 12ft (3.66m) triaxial with connectors
Coupling compound
USB-C flash drive
USB-C charger
IP67 rated carrying case
