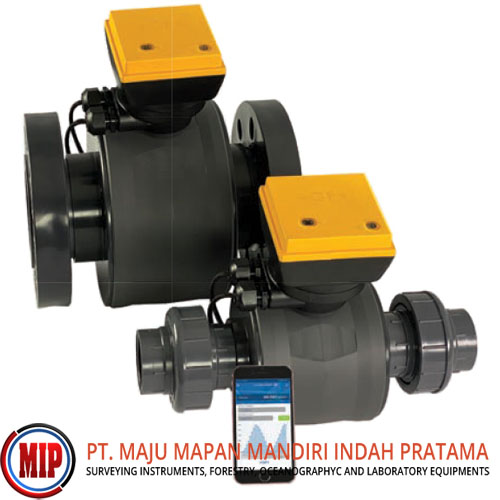

GF Signet 2581 FlowtraMag Magnetic Flow Meter
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The GF Signet 2581 FlowtraMag Magnetic Flow Meter is a full-bore plastic PVC in line style magnetic flow Meter. The PVC body with Titanium or Hastelloy C electrodes has no moving parts, and is two to three times lighter in weight compared to traditional metal magmeters on the market. It is designed for high accuracy flow measurement in short pipe runs, making it an ideal solution for industrial applications where performance and ease of use are important.
The FlowtraMag design is factory calibrated with certificate at ±1% of reading accuracy. It is ordered in corrosion resistant materials to provide long-term reliability with minimal maintenance costs. The LED indicators show at-a-glance system status, including normal operation, zero flow and partially filled pipe detection.
The flow meter provides three different outputs; field selectable frequency or digital (S3L) as well as analog 4 to 20 mA in both passive and active configuration. The GF Config Tool Bluetooth app supports iOS and Android for simple on-the-fly user configuration with in with instantaneous flow reading.
These versatile, easy-to-install meters deliver accurate flow measurement in pipe sizes of DN25 (1 in.), DN40 (1.5 in.), DN50 (2 in.), DN80 (3 in.) and DN100 (4 in.), optimized for performance in short pipe runs often associated with final effluent lines, well heads and water treatment skids.
Applications for the 2581 include:
Chemical Processing/Production
Cooling Tower
Filtration Systems
Water and Wastewater Treatment
Municipal and Industrial Water Distribution
Pool and Aquatics
Process Control, Water Process Flow
Reverse Osmosis
Scrubber Systems
Metal Recovery and Landfill Leachate
Mining
Features
Pipe size and flow ranges available
DN25 (1in): 0.53 to 266.35 LPM (0.14 to 70.36 GPM)
DN40 (1.5in): 1.36 to 662.34 LPM (0.36 to 174.97 GPM)
DN50 (2in): 2.23 to 1112.60 LPM (0.59 to 293.92 GPM)
DN80 (3in): 5.11 to 2493.75 LPM (1.35 to 658.78 GPM)
DN100 (4in): 8.72 to 4357.83 LPM (2.30 to 1151.22 GPM)
Titanium or Hastelloy electrodes
No moving parts
±1% accuracy
Partially filled pipe detection status indicator
Reverse flow direction configurable
Bluetooth 4.2 capable
Note: phone not included
