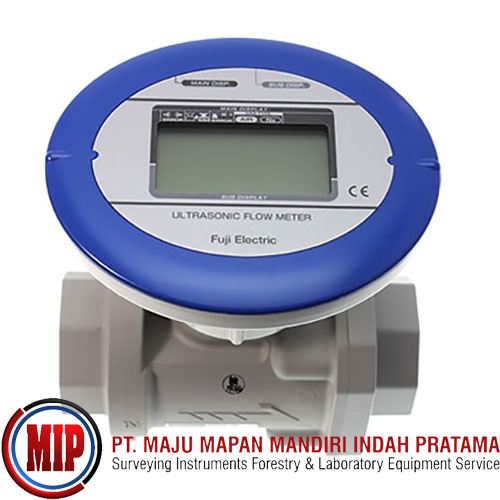

FUJI ELECTRIC FWD Series Ultrasonic Flow Meter
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Fuji Electric FWD Ultrasonic Flow Meter measures flow rates of the air or nitrogen gas in pipes from 25mm to 200mm. As an air flow meter it is ideal for management of the operating load rate of the compressor, management of the amount of the used air in the factory and detecting of the air leakage in the factory. With no moving parts the FWD has high resistance to fluids containing oil, vapor and dust. The wide rangeability of 1:60 allows for accurate measurements of even smaller flow rates. The built in battery (10 year life span) makes power line construction unnecessary. An external power supply of 24VDC is also available.
Part Number: CONFIGURE OPTIONS
Ultrasonic Measurement: Uses the transit-time method to measure flow rate, offering high durability without moving parts.
No Pressure Loss: Eliminates energy loss by avoiding pipe protrusions and intrusions, which is crucial for air management.
Oil & Mist Tolerance: High resistance to fluids containing oil, vapor, and dust allows for use without filters or mist separators.
Wide Rangeability: Offers a 1:60 flow rangeability for accurate measurement of both small and large flow rates.
Multiple Power Options: Can be powered by an internal lithium-ion battery (with a ~10-year lifespan) or an external 24VDC power supply.
Normal/Standard Condition Conversion: Standard functions allow for conversion of actual flow rates to normal or standard conditions for accurate air management.
Air Leakage Detection: Ideal for locating and managing air leaks within a factory environment.
Broad Pipe Diameter Applicability: Available for pipe sizes ranging from 25mm to 200mm.
Benefits;
Energy Savings: Eliminates pressure loss, leading to lower operating costs.
Reduced Maintenance: No moving parts and robust construction reduce the need for maintenance.
Versatile Applications: Suitable for compressor control, factory air usage management, and detecting air leakage.
Simplified Installation: Battery-powered options eliminate the need for power line construction.
Include:
(4) Centering collar
(1) M4 hexagonal wrench
(2) Flange gasket
(1) Bolt set (bolt/nuts/plain washes
(1) External connection cable (external power supply type)
(1) Instruction manual
