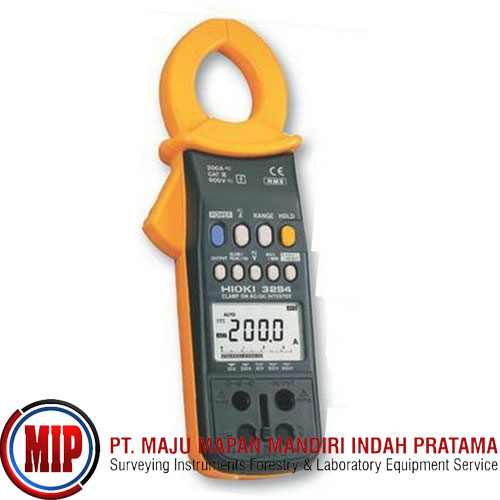

HIOKI 3284 AC/DC Clamp On Hi-Tester

Rp. 12,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Using the external output functions of the 3284 or 3285 in combination with a HIOKI Memory HiCorder enables recording of current and frequency fluctuations and recording and harmonic analysis of instantaneous waveforms. The monitor output (MON) spans a wide frequency range from DC to 20 kHz (15 kHz in the case of 3285), which allows the units to be used for electric current analysis in various fields ranging from batteries to inverters.
The AC+DC mode enables measurement of the RMS value of full- or half-wave rectified waveforms used in electrical machinery.

Features
200 Arms, clamp aperture: 33 mm dia.
Inrush current crest value
RMS value of full-wave rectified waveforms
Waveform and harmonic analysis

Specification:
AC Current range:   AC (RMS or Peak value)20.00 or 200.0 A AC, 2 ranges (±1.3 % rdg. ±3 dgt. at 50 or 60Hz), AC+DC (RMS or Peak value)20.00 or 200.0 A AC, 2 ranges (±1.3 % rdg. ±13 dgt. at 50 or 60Hz), Effective value rectifier
DC Current range:   DC (Average or Peak value)20.00 or 200.0 A DC, 2 ranges (±1.3 % rdg. ±3 dgt.)
AC Voltage range:   AC (RMS or Peak value)30.00 to 600 V AC, 3 ranges (±1.0 % rdg. ±3 dgt. at 50 or 60Hz), AC+DC (RMS or Peak value)30.00 to 600 V AC, 3 ranges (±1.0 % rdg. ±7 dgt. at 50 or 60Hz), Effective value rectifier
DC Voltage range:   DC (Average or Peak value)30.00 to 600 VDC, 3 ranges (±1.0 % rdg. ±3 dgt.)
Frequency Measurement:   10 to 1000 Hz, 2 ranges (±0.3 % rdg. ±1 dgt.)
Analog Output:   None
Frequency characteristics (at AC current / voltage):   DC, 10 to 2 kHz
Display Section:   Current / 2500 dgt. Voltage / 3750 dgt. Bar graph / 35 seg
Sampling Rate:   2 or 4 times/sec (Slow: 1 times/3 sec)
Crest Factor (RMS):   2.5 (1.7 at 200 A range), 1.5 (200 A range)
Max. Circuit Voltage:   600 V AC rms (insulated wire)
Power Supply:   6F22(006P) × 1, Continuous use 25 hours, or AC adapter
Core jaw dia.:   Ø33 mm(1.3 in)
Dimensions:   62 mm(2.44 in)W × 230 mm(9.06 in)H × 39 mm(1.54 in)D
Weight:   460 g (16.2 oz)
Accessories:   9207-10 TEST LEAD (1), 9399 CARRYING CASE (1), Hand strap (1)
