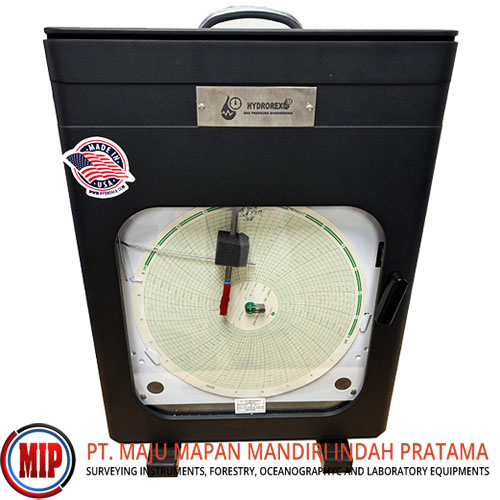

HYDROREX MCR-10K-REX (0-10000 PSI) Pressure Chart Recorder

Rp. 95,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Mechanical Pressure & Temperature Chart Recorder
Pressure chart recorder mechanical standard 12″ circular pressure test recorders, Battery, Aluminum Housing, designed to measure flow, static pressure and temperature in all industrial pressures applications. Is available in 1 to 2 or 3 pens configurations. Quartz USA / OGME in Houston.
PC-11 Battery intrinsically safe 1.5 volts “C” cell powered eleven speed rotary motor.
Circular time ranges rotation speed options : 1HOUR – 96MIN – 12HR – 1DAY – 2DAY – 7DAYS – 8DAYS-14DAYS – 16DAYS – 31DAYS & 32 DAYS.
Recorder PEN: Pressure RED, Temperature PEN blue (up to 3 elements pens available)
All stainless steel 316 machinery, helical coil, tubing, fittings and hardware.

Pressure Chart Recorder 0-10000 PSi | Model MCR-10k-REX
Pressure Range: 0-10000 PSI (689 BAR)
Battery drive (included)
Inlet Port: 1/4 female NPT
Accuracy: 1%
Paper: 12″ Circular Chart
Made in USA
Certified According to API
Barton / Quartz USA
Cast Aluminum Housing
Overall 22″ x 14″ x 8″
Style Handle & Stand
Coating Black Color
Additional option: Temperature element – must be requested
