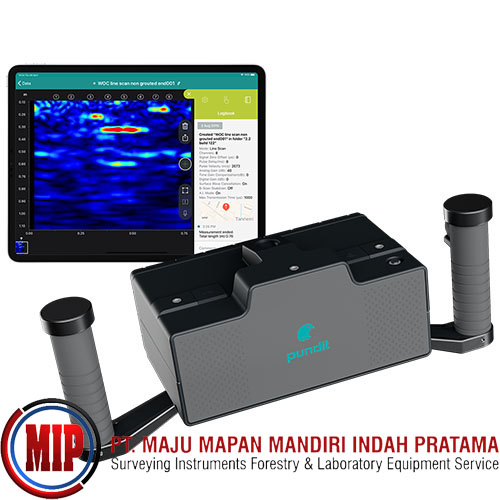

PROCEQ Pundit PD8050 Ultrasonic Pulse Echo

Proceq Pundit Ultrasonic Pulse Echo, PD8050
Device Description
The Pundit PD8050 is a wireless ultrasonic imaging system for structural imaging, object and defect detection with ultrasonic pulse echo technology. One device for multiple instruments, with full control over all transmission parameters. Suitable for various applications, including concrete imaging and real-time imaging, weight optimization and AI assistance. Detect subsurface defects, measure concrete pulse velocity and concrete element thickness. Advanced features like AR, line scan and immediate data visualization makes it a must have for professionals.

Device Features
Also various measurement modes for different applications like defect detection and concrete measurements.

Whether you are scanning objects and defects or structural imaging, the single device for structural imaging the Proceq Pundit has the data you need at your hand. Enhanced probe controls makes the device more functional and efficient.

Device Capabilities
The Proceq Pundit is a powerful device that offers multiple capabilities for structural imaging, object and defect detection, concrete measurement and concrete pulse velocity determination. Advanced ultrasonic pulse echo technology detects subsurface defects, measures concrete element thickness and determines concrete pulse velocity for homogeneity and strength estimation. Superior image clarity with control of all transmission parameters for accurate and reliable results.Also the Proceq Pundit PD8050 offers inspections that improves efficiency and visualization with AR and AI. Whether you are doing structural imaging or object and defect detection the Proceq Pundit PD8050 has the data you need at your hand.

Imaging Modes
The Proceq Pundit has various imaging modes for different applications and requirements. These are:

2D Imaging: Gives a detailed view of the internal structure of the concrete, so you can see defects and anomalies.

3D Imaging: Creates a 3D model of the concrete structure, so you can see the internal composition.

Heatmap and AR Visualization: Shows the distribution of defects or anomalies in the concrete and overlays the 3D image to the real world for better visualization, so you can understand the context of the data.

Large Scale 2D, 3D, Heatmap: Uses advanced visualization modes for better image clarity and real-time imaging for various applications, for subsurface defect detection and structural analysis.

Line Scan Imaging: Gives a detailed view of the internal structure of the concrete along a specific line, for focused inspections.

Stripe Scan Imaging: Creates a 3D model of the concrete structure along a specific stripe, for detailed analysis of the area.

Time Slice View: Produces B-scan outputs for better visualization of internal structures and defect detection and analysis.
