DELMHORST TotalCheck RP2/MM Moisture Meter for Building Inspection

Delmhorst TotalCheck [TCHECK/RP2/MM] Moisture Meter for Building Inspection - Includes Meter, 22-E Electrode, RH/T-C1 Cable, CS-3 Sleeves, Carrying Case. Delmhorst’s TotalCheck 3-in-1 meter measures moisture by pin and scan modes, and is fast acting, accurate, thermo-hygrometer. The removable RH sensor measures ambient temperature and RH, and calculate dew point and GPP. High levels of ambient humidity can be a warning sign at inspection jobs. RH is also a major concern when testing a concrete sub-floor. To address this concern, TotalCheck is designed to conform to the ASTM F-2170 standard to determine RH in a concrete slab using in-situ probes. Using TotalCheck to follow the ASTM F-2170 will provide useful information to minimize moisture-related flooring problems and failures.

Part Number: TCHECK/RP2/MM
Carrying case: Included
Pin/Electrode: 22-E Electrode, RH/T-C1 Cable, CS-3 Sleeves
Integral Contact pins mounted on top of meter provide 5/16 in. penetration
Connector for external Electrodes
On-screen reading recall of up to 1400 stored readings
Date and time stamp for each stored reading
Job groupings
Infrared linking capability with application software
9-V battery
1-year warranty
Pin Mode: 5%-60% wood scale
Corrects for 69 individual wood over the range of 6%-60% MC
Corrects for temperature over the range of 0-255 deg. F/-18-124 deg. C
0.1% - 6% sheetrock scale
0-100 numerical reference scale for non-wood building materials
Scan Mode:
0-300 numerical reference scale
Thermo-hygrometer with RH sensor:
RH Sensor conforms to ASTM F-2170 standards
Measures temperature over the range of -4-158 deg. F/-20-70 deg. C
Measures RH over range 0-100%
Calculates dew point
Calculates specific humidity (GPP)

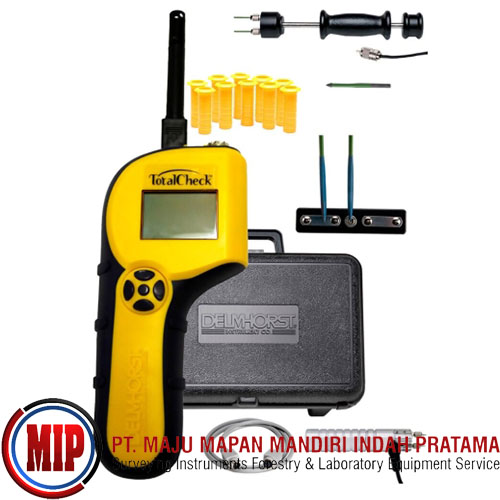

Include:
(1) Delmhorst TotalCheck 3-in-1 Moisture Meter for Building Inspection
(1) RHT-S3 Humidity Sensor
(1) RHT-C1 Cable
(1) 26-ES Electrode
(1) 496 Pins (10 ten)
(1) CS-3 Sleeves (10 ten)
(1) PC/KIT Software
(1) Carrying Case
(1) Instructions
