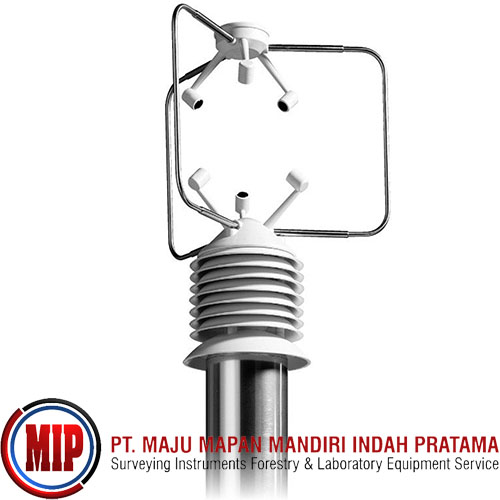

DELTA OHM HD2003 Ultrasonic Weather Station

Delta Ohm HD2003 [HD2003] Wind Speed and Direction, Air Temperature, Relative Humidity and Barometric Pressure. The HD2003 are cutting-edge three-axis ultrasonic anemometers designed to provide precise, real-time measurement of wind speed, direction, and other key environmental factors. These high-performance instruments are ideal for a wide range of applications, from meteorology and aviation to construction and industrial safety. With the HD2003, you also get additional features such as temperature, relative humidity, and barometric pressure measurements, making it the ultimate solution for comprehensive environmental monitoring. Whether you need to monitor wind conditions at a remote location or integrate high-quality data into your weather station, the HD2003 series delivers exceptional accuracy, reliability, and durability in any environment.

Features:
Part Number: HD2003
Sensor: Wind Speed and Direction, Air Temperature, Relative Humidity and Barometric Pressure
Determination of the anemometric quantities represented in diverse measurement units: wind speed and direction, U-V-W Cartesian components of speed, wind gust, sound speed, sonic temperature.
(HD2003 Model) additional output quantities: Temperature, Relative Humidity and Pressure.
 5 analogue voltage or current outputs, with different measuring ranges.
Up to 12 further analogue current or voltage outputs, with diffrent measuring ranges.
5 Serial Communication interfaces: RS232, RS422, RS485 MODBUS-RTU, RS485
Multidrop Communication Mode and AoXnd
Configurable output rate of digital output data string.
Configurable average periods 1÷60sec and 1÷60min. for all output quantities.
Algorithmic raw date processing and validation, assuring ± 1% precision to anemometric quantities.
Digital high frequency data acquisition mode with 50Hz data output, or high frequency analogue data acquisition within 5Hz and 20Hz.
Self-diagnosis with error checking and report.
Reliability and precision on whole measuring range, no additional calibration required.
Flexible, easy-to use demo software, configurable according to the user’s needs through Computer interface.
User interface for ‘Setup’ management and software upgrade through RS232 or RS485.
Automatic alignment to the magnetic North through built in compass.
No moving part, with reduced maintenance and service costs.
Rugged and reliable structure, suitable for continuous operation even in severe environmental conditions.
Applications:
Meteorology
Aviation and Navigation
Tunnels, Highways
Climatology
Sport and winter stations
Safety in yards
Construction/Crane safety
Industrial buildings
(On request) Heaters Option: Sonic transducers integrated heating device, to prevent ice and snow formation, ensuring a correct functioning even when sleeting or snowing.
(On request) RS422 Option: 4-wire full duplex RS422 communication integrated circuit.

Include:
(1) HD2003 - 3 Axis Ultrasonic Anemometer
(1) Connector CP2003/C
