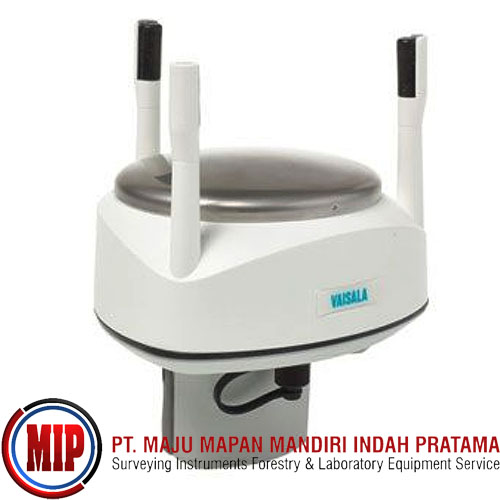

VAISALA WXT533 Weather Transmitter Multi-Parameter

The Vaisala WXT533 is a sensor with parameter combinations that allows you to choose what is right for your application and is the flexible, integrated building block for weather applications. The WXT533 measures rainfall, wind speed, and wind direction.

Flexibility
The WXT530 is a series of weather instruments that provides six of the most important weather parameters, which are air pressure, temperature, humidity, rainfall, wind speed and direction through various combinations. You can select the transmitter with the needed parameter(s) into your weather application, with a large variety of digital communication modes and wide range of voltages. There is a heated option available. Low power consumption enables solar panel applications. The Vaisala WXT530 Series focuses on maintenance-free operations in a cost effective manner.

Integration
The series offers analog input options for additional third party analog sensors. With the help of the built in analog to digital converters, you can turn the Weather Transmitter WXT530 into a small, cost effective weather parameter hub. Additional parameters include the solar radiation and external temperature sensor. Further, the analog mA output option for wind speed and direction enables wide variety of industrial applications. The WXT530 exceeds IEC60945 maritime standard.

Solid Performance
The WXT530 Series has a unique Vaisala solid state sensor technology. To measure wind the ultrasonic Vaisala WINDCAP Sensors are applied to determine horizontal wind speed and direction. Barometric pressure, temperature, and humidity measurements are combined in the PTU module using capacitive measurement for each parameter. This module is easy to change without any contact with the sensors. The precipitation measurement is based on the unique acoustic Vaisala RAINCAP Sensor without flooding, clogging, wetting, and evaporation losses.

Features:
Essential ​weather parameters in cost efficient package
Measurement parameters are integrated into one multiparameter platform
Flexible selection measurement parameters available
Weather parameter hub having analog input options
Set of 3rd party analog sensors can be connected (T, S.R, Level, T.P.)
Digital interface incorporates also analog input parameters
Separate Data and Service ports
Analog output options
Wide variety of digital communication modes
Complies ISO60945 standard for maritime use
DNV certificate approval process on-going
Wide range of operating and heating voltages
Compact, light-weight
Easy to install
No moving parts
Configuration Tool for PC
Works also with solar panels
USB connectivity
IP66 housing with the mounting kit
Machine-to-machine interface

What's In The Box:
(1) Vaisala WXT533 [WXT533] Rainfall & Wind Sensor
