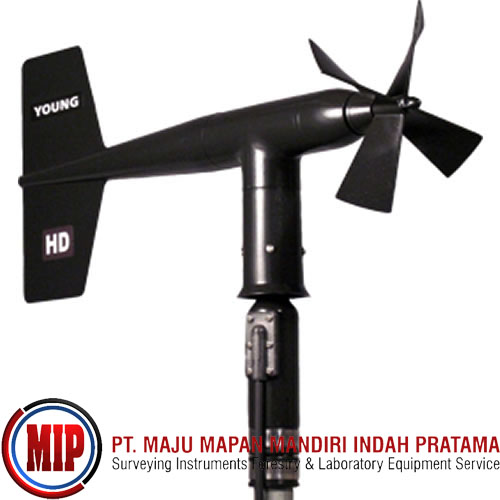

RM YOUNG 05108 Heavy Duty Alpine Wind Monitor

The Wind Monitor-HD-Alpine has all the important features of the Heavy Duty unit that greatly extend the service life. It promises improved survivability for the most severe wind measuring applications. In addition, it has the benefit of a specially formulated, ice-resistant coating on the external surfaces to improve performance in harsh alpine condtions. The reliability of the Wind Monitor sensor is well known. The sensitive vane and propeller combination has proven effective for countless applications in many disciplines. The Wind Monitor-HD (Heavy Duty) model is designed to address the most common concern of mechanical wind sensors: bearing replacement.  The HD utilizes extremely long-wearing, oversize ceramic bearings to increase servcie life many times longer than standard stainless steel bearings. In addition to being more wear-resistant, ceramic is resistant to corrosion in environments that are hostile to steel bearings.  The Wind Monitor-HD also has oversized propeller shaft, high pitch propeller and stainless steel locking propeller nut, all features that will enchance long-term reliability of the sensor. The instrument mounts on standard 1 inch pipe.

Features :
Extremely long-wearing, oversize ceramic bearings to extend service
Oversized propeller shaft
Ice-resistant coating with all-black color scheme for harsh alpine conditions.

Specifications :
Range: Wind speed: 0-100 m/s (224 mph); Azimuth: 360° mechanical, 355° electrical (5° open)
Accuracy: Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading;  Wind direction: ± 3 degrees
Threshold: Propeller: 1.0 m/s (2.2 mph) Vane: 1.0 m/s (2.2 mph)
Signal Output: Wind speed: magnetically induced AC voltage, 3 pulses per revolution. Azimuth: analog DC voltage from conductive plastic potentiometer − resistance 10K Ω , linearity 0.25%, life expectancy − 50 million revolutions
Power Requirement: Potentiometer excitation: 15 VDC maximum
Sensor Cable: A 3 meter (9.8 ft) pigtail cable is supplied for electrical connections.  For longer cable lengths a user supplied junction box or connector may be used.
Dimensions: Overall height: 40 cm (15.7 in);  Overall length: 57 cm (22.4 in);  Propeller: 18 cm (7 in) diameter;  Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight: Sensor weight: 1.0 kg (2.2 lbs);  Shipping weight: 2.3 kg (5 lbs)
MODEL 05608C, Wind Sensor Interface (0-5 VDC outputs):  Power Requirement: 8-24 VDC (5 mA @ 12 VDC);  Operating Temperature: -50 to 60°C
Output Signals: 0-5.00 VDC full scale
MODEL 05638C, Wind Line Driver (4-20 mA outputs):  Power Requirement: 12-30 VDC (40 mA max.);  Operating Temperature: -50 to 60°C; Output Signals: 4-20 mA full scale.
