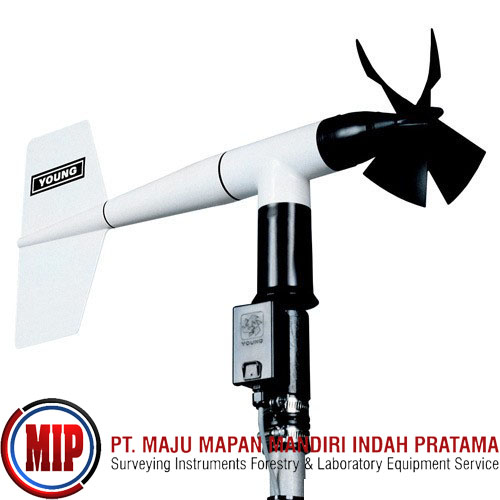

RM YOUNG 05501LM Intrinsically Safe Wind Monitor
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The RM Young 05501 Wind Monitor-IS can safely be used in Class 1, Division 1, Group A,B,C,D hazardous areas. The wind speed sensor is a four blade propeller. The propeller drives a reliable, non-contacting magnet/coil transducer; slip rings and brushes are not used. The wind direction sensor is a durable molded vane. Vane angle is sensed by a precision, long-life potentiometer housed in a sealed chamber. Internal circuitry converts signals for wind speed and wind direction into separate, 4 to 20 mA current outputs. This configuration is especially suited for long cable runs or for industrial settings where noise immunity is important. The instrument is constructed of UV stabilized plastic with stainless steel and anodized aluminum fittings. Precision grade, stainless steel ball bearings are used. Circuitry and cable terminations are in a convenient junction box on the instrument base. The instrument installs on standard 1 inch pipe. A mounting orientation ring assures correct alignment of the wind direction reference when the instrument is removed for maintenance.
Features :
Wind speed sensor is a four blade helicoid propeller
Wind direction sensor is a durable molded vane
Corrosion resistant construction protects the sensor from harsh environments.
Specifications :
Range: Wind speed: 0-60 m/s (134 mph)
Gust survival: 100 rn/s (220 mph)
Azimuth: 360° mechanical, 355° electrical (5° open)
Accuracy: Wind speed: ±0.3 rn/s (0.6 mph) or ± 1%; Wind direction: ±3 degrees
Threshold: Propeller: 1.0 m/s (2.2 mph); Vane: 1.1 m/s (2.4 mph)
Dynamic Response: Propeller distance constant (63% recovery) 2.7 m (8.9 ft); Vane delay distance (50% recovery) 1.3 m (4.3 ft); Damping ratio: 0.3; Damped natural wavelength: 7.4 m (24.3 ft); Undamped natural wavelength: 7.2 m (23.6 ft)
Signal Output: WS: 4 to 20 mA for 0 to 50 m/s (0 to 100 m/s optional); WD: 4 to 20 mA for 0 to 360 degrees azimuth
Power Requirement: 8-30 VDC (40 mA max.)
Dimensions: Overall height: 37 cm (14.6 in); Overall length: 55 cm (21.7 in); Propeller: 18 cm (7 in) diameter
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight: Sensor weight: 1.0 kg (2.2 lbs); Shipping weight: 2.3 kg (5 Ibs).
