RM YOUNG 26800 Meteorological Display

The RM Young 26800 Meteorological Display offers a unique and flexible solution for meteorological data measurement, recording and display. The advanced design has features and flexibility to perform a wide variety of monitoring tasks. From simple display of a single variable to recording data from a complete sensor suite, the 26800 can satisfy countless measurement needs.

The real strength of the 26800 is the ability of the user to custom program the device to perform virtually any task. A user-friendly PC program allows easy formatting of the program parameters, display screens and recording functions. Programming is also possible using front panel controls when a PC is unavailable. The 26800 has built-in memory for storage of large amounts of recorded data. More than 2 million data points may be stored. Data retrieval is simplified by the included PC software program.

The RM Young 26800 Meteorological Display is supplied with a large selection of sensor inputs. Wind, temperature, precipitation, humidity and other sensors are easily connected through the back-panel terminals. Frequency, voltage, current-loop and serial inputs are provided. All values are completely scalable in the program. Many output options are available from the 26800. Terminals are available for calibrated voltage outputs and current outputs as well as serial outputs.

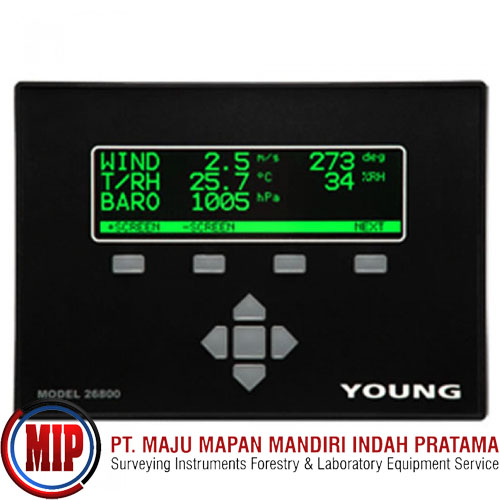

The RM Young 26800 Meteorological Display features a large, high-contrast LCD screen. The display text and layout are fully programmable so measured data can be displayed in a wide variety of formats. Up to 8 screens may be used, and display illumination is easily adjusted for best viewing in any light. The display's compact configuration makes it ideal for panel or wall mount application. The adjustable stand permits table top use as well.

Features:
All-in-one design
Illuminated display with 8 screens
Brightness and contrast control
Large and small fonts, up to 240 characters per screen
Simple, intuitive, easy-to-navigate menus
16 single-ended or 8 differential voltage inputs in any combination
4 pulse or frequency inputs in any combination
4 analog outputs, voltage or current in any combination
4 solid-state switch outputs
Independent RS-232 and RS-485 serial communication ports
Capacity for 512 user program instructions
Capacity for over 2 million non-volatile floating point data records
Simple setup via front panel or easy-to-use PC program

Includes:
(1) RM Young 26800 Meteorological Translator
(1) AC Wall Adapter

Specifications:
Dimensions: 200 mm (7.8 in) x 144 mm (5.7 in) x 54 mm (2.1 in)
Weight: 0.8 kg (1.8 lb)
Operating Temperature: 0° C to 50° C
Storage Temperature: -30° C to 50° C
Display: Adjustable high-brightness, high-contrast with 8 user programmable screens.
Power: 10 to 30 VDC at 4 W max
Memory: 2,162,688 data records. 512 User Program Instructions.
Voltage Input: Channels: 16 max.; Measurement Range: -2.5 to 5 VDC ;Accuracy: 0.1% from 0 to 40° C.
Pulse / Frequency Input:Channels: 4 Inputs. 0 to 2500 Hz.
Excitation: Channels 2 Outputs Regulated 5VDC at 10mA
Voltage / Current Output:Channels: 4 Outputs. ; Range: Voltage 0 to 5VDC. Current 0 to 20mA.; Resolution 12-bits (1.25 mV or 0.005 mA).
Serial I/O; Channels: 2 ports. One for RS-232, one for RS-485. Both channels are full duplex with no handshaking, 1 start, 8 data, 1 stop, no parity.; Baud Rate: 1200 to 230,400 Baud.
Switch Output: Channels: 4 Solid State Switch outputs.; Voltage/Current: Each switch can handle 60VDC at 5A.
