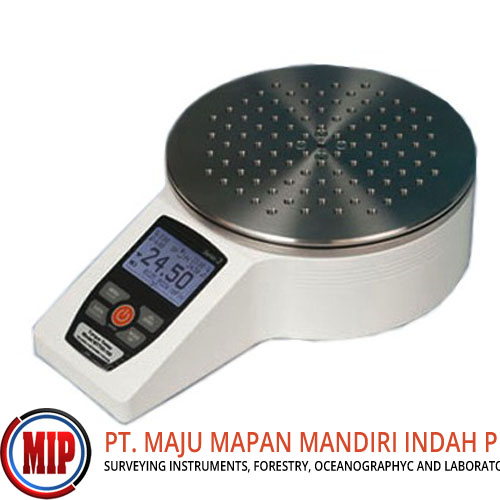

CHECKLINE CAP-TT05 Universal Torque tester

Checkline CAP-TT05 Universal Torque tester, 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm. Series TT05 universal torque testers can be used for a range of applications up to 100 lbFin [11.5 Nm]. The stainless steel loading surface features a matrix of threaded holes, ideal for accommodating specialized fixtures and attachments. The testers' rugged design and simple, intuitive operation allow for use in laboratory and production environments. Accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.

The TT05 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon sample break, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for torque tool testing, tamper evident closure testing, and other applications. Series TT05 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT05’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Part Number: MTT05
Range: 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm
Stainless steel loading plate with #10-32 threaded holes accommodates fixtures and attachments
USB, RS-232, Mitutoyo, and analog outputs
First / second peak detection for torque tool testing, bottle cap testing, and other applications
Password protection prevents unauthorized changes
High-speed 7,000 Hz sampling rate accurately captures peak torque values
5 selectable units of measurement
Threaded holes are not drilled through the plate, for protection from debris and liquid
Automatic output, data storage, and zeroing upon sample break helps automate testing processes
1,000-point data memory with statistics and outputs
Programmable set point indicators and outputs for pass/ fail determination
Configurable audio alarms and key tones
MESURTM Lite data collection software included

Include:
(1) MTT05 - Universal Torque Tester
(1) USB cable
(1) AC adapter
(1) Rechargeable battery
(1) Certificate of calibration without data
