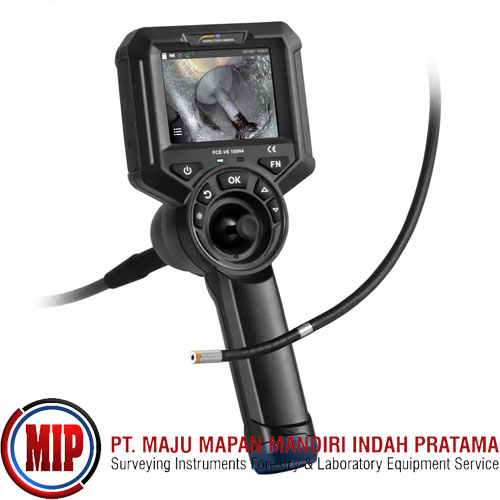

PCE VE100N4 Industrial Borescope

The multiway industrial borescope with a cable length of one meter and a camera head diameter of 6 mm is the ideal tool for endoscopy. The LED illuminance on the camera head can be set in 5 steps up to 25,000 lux. This ensures that the test item is adequately illuminated. With the mini-HDMI interface on the multiway videoscope, the image can be transmitted to an external monitor or projector. This has the particular advantage that the multiway videoscope can be used for presentations. Thus, the multiway videoscope is used in car workshops, heating and air conditioning technology, or vocational schools, universities and other educational facilities.

Photos as well as videos can be recorded with the multiway industrial borescope. The recordings are saved directly on the Micro SD card and can be viewed on the multiway videoscope. It is also possible to transfer the recordings from the Micro SD card to a computer. This means that the recordings from the multiway videoscope can be stored in expert reports, for example.

The 3500 mAh battery enables an operating time of more than 3 hours before it has to be recharged. To recharge the battery, the multiway videoscope can be connected to any 5 V USB interface.

Highlights
- Multiway 360° rotation head
- Rechargeable via USB interface
- 3.5" display
- Operating time of more than 3 hours
- Mini-HDMI interface for image output
- Braided tungsten tube with a length of 1 m / 3 ft 2"

Specification
Camera diameter 6 mm  / 0.23"
Cable length 1 m / 3 ft 2"
Camera pixels 1,000,000
Depth of field 7 ... 110 mm / 0.27 ... 4.33"
Field of view 120°
Swivel range 360°
Illuminance can be set in five levels up to 25,000 lx
Cable material Tungsten braided
Bending radius >220°
Display 3.5" IPS
Display resolution 640 x 480
Photo and video format JPG / MP4
Photo and video resolution 960 x 720, 1280 x 720
Magnification 5-times
Protection class camera cable: IP67 display: IP65
Memory
16 GB Micro-SD card
Battery power supply
1 x 3.7 V 3200 mAh 18650 battery
Power consumption 3.5 W
Operating time >3 hours
Mains power supply
primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.35 A
  secondary: 5 V DC, 2 A
Interfaces Mini-HDMI (image transmission)
  Micro-USB connector (charging port)
Storage conditions -10 ... +63 °C / 14 ... 145 °F, <92 % RH, non-condensing
Operating conditions display*   -10 ... +50 °C / 14 ... 122 °F, <92 % RH, non-condensing
Operating conditions camera* -10 ... +80 °C / 14 ... 176 °F, <92 % RH, non-condensing
*at temperatures below 0 °C / 32 °F the display must be preheated
and the camera head must not be swivelled completely
Dimensions 277 x 106 x 92 mm / 10.9 x 4.1 x 3.6"
Weight ca. 500 g / 17.6 oz

Delivery Scope
1 x Multiway Industrial borescope PCE-VE 100N4
1 x 3.7 V 18650 battery
1 x Micro USB cable
1 x USB power adapter
1 x Micro SD memory card
1 x Micro SD card adapter
1 x Transport case
1 x Screwdriver
1 x Instruction manual
