STARRET S781BXTFZ AccuBore Electronic Bore Gage with Output Sets

Starrett S781BXT AccuBore - Electronic Bore Gage with Output Set

The 781BXT AccuBore is a high-quality, trigger-activated, two-point, and three-point contact bore gaging system with extended range. Its convenient singlehanded operation provides speed and control. Simply squeeze the trigger, insert the gage into the bore, and release the trigger for an instant reading from the large, easy-to-read digital display. The Starrett AccuBore gages feature mechanically-driven parallel anvils which extend simultaneously, establishing a more true alignment to the axis of the bore. This provides consistent pressure, resulting in more accurate readings than models with spring-driven contacts which are subject to pressure variations. Speed and convenience are further enhanced by the repositionable AccuBore wireless indicator, which may be swiveled and rotated for left, right-hand, or even vertical viewing. The gage also features a set of "Go/No Go" lights in the readout display that quickly indicates whether a bore measurement is within a preset tolerance.

Starrett S781BXT AccuBore - Electronic Bore Gage with Output:

SPC output port for data cable (PT61055/PT61057 Sold separately)
Bluetooth output capability for SPC analysis (Free software download required)
Single-hand operation with right and left-hand viewing flexibility
Large, easy-to-read display with an indicator
Enhanced wear life with carbide-faced contacts - available from 1/2in to 8in
Convenient "Go/No-Go" tolerance indicator lights
True alignment with mechanically driven parallel anvils
Resolution .00005in (0.001mm)
Accuracy of up to .00015in (0.004mm)
Push button inch/metric conversion
Preset and preset recall
Hold, max/min, and zeroing capabilities
Blind bore measurement is standard for .50in (12.7mm) and above

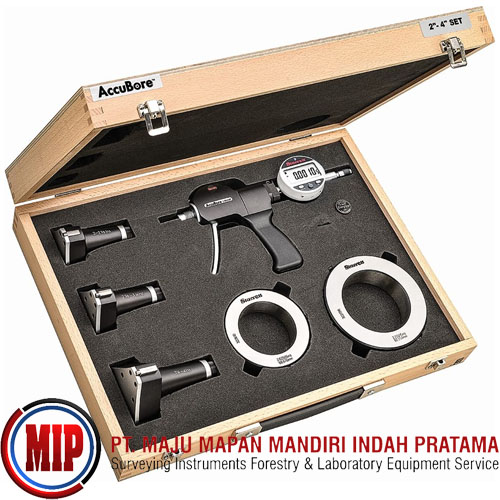

Set Include - Pistol grip gage with measuring heads, wireless indicator, contacts, setting ring with certification, instructions, battery, and case
