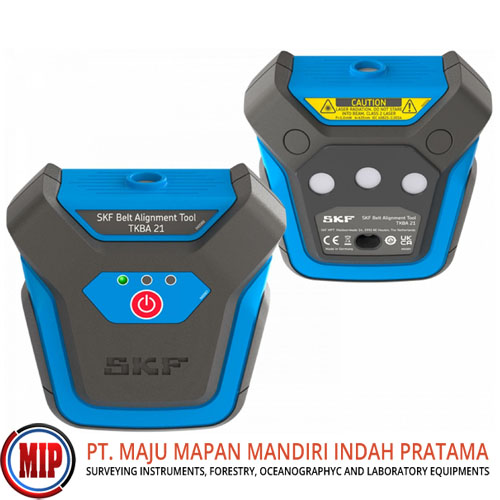

SKF TKBA21 Belt Alignment Tool

Rp. 58,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The tool has two components: a laser-transmitting unit and a receiver unit. Each is attached quickly and easily - using a powerful magnet - to the inside or outside face of a belt pulley or chain sprocket. The TKBA 21 can be applied to most machines that use V belts, banded belts, and ribbed belts - as well as those with chain sprockets. A laser line is projected from the transmitter to the receiver - which is mounted on the opposite pulley. The tool then corrects for vertical angle, horizontal angle, and parallel misalignment - including combinations of all three.

•Two laser transmitter/receiver units
•Uses red laser diodes and can be used for distances up to 3 m (10 ft).
•Fast, easy attachment - using powerful magnets.
•Simplified alignment process
•Simultaneous adjustment of tension and alignment
•Applicable to most machines using V belts, banded belts, ribbed belts - as well as chain sprockets.

Typical applications:
SKF Belt Alignment Tools are commonly used in power plants, recycling facilities, chemical plants, and food & beverage production.

Belt drives are found in a variety of applications, including HVAC, pump installations, paper mills, flour mills, lathe machines, milling machines and conveyors. Sprocket drives are often used in agricultural machinery, compressors, and engine camshafts.
