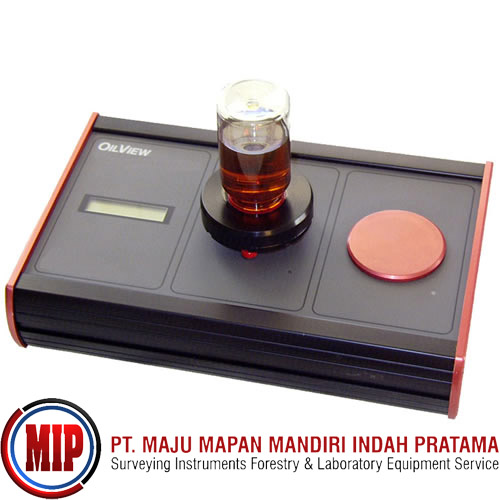

MJR OilView QuickCheck Analyzer
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Features:
Easy to use
Provides fast information on contamination, degradation, and equipment wear
Helps you make timely decisions about lubricant problems
Because fast answers are often critical to your maintenance needs, the OilView® in-shop oil analysis system provides useful and fast results to help you solve lubricant related problems quickly. The OilView® Quick-Check Analyzer is easy to use. Test results are available in 1 minute and are easily interpreted. The knowledge you gain quickly translates to longer equipment life and condition based intervals between oil changes.
With the OilView® Quick-Check, your staff develops valuable in-house experience and saves time and money. OilView® helps you make informed decisions by providing data in three critical categories: oil degradation, oil contamination, and machine wear.
Data management capabilities such as reporting and trending are available with included PC software. A PC is not required to perform tests.
Operation and Storage
Sample Volume: 30ml minimum
Test Time: 1 minute (dilution required)
Viscosity: All oils
Lube Types: All mineral oils and synthetics
Cleaning: Wipe with absorbent tissues
Calibration: Performed onsite by user each day of use
Temperature: 32-120° F (0-50° C)
Operating: Temperature constant within ± 5°F (3°C
Includes:
Oil Analyzer
1 Oil Sensor Grid
Oil Sample Pump
Carrying Case
1 year warranty on hardware
One set of calibration fluids, 220 and 300
Communication Cable
PC software (not required for operation)
Specifications:
Physical Dimensions:
Depth: 8.3 in. (212 cm)
Height: 2.6 in. (65 cm)
Width: 12.75 in. (325 cm)
Weight: 6.10 lbs (2.87 kg)
Power Supply:
110 to 240 VAC Universal IEC Input 50 or 60 Hz.
Interface:
2 x 16 character LCD
9-pin sub-D cable to IBM PC-compatible computers via RS-232C interface (cable provided with unit)
Measurements:
Dielectric: Compare with dielectric of clean oil to determine lube degradation
Ferrous Index: Ferrous particles > 5 microns
Large Ferrous Indication: Ferrous particles >> 60 microns
Large non-Ferrous Indication: Non-ferrous particles >> 60 microns
Droplet Indication: Free water droplets
Water: Water estimate
