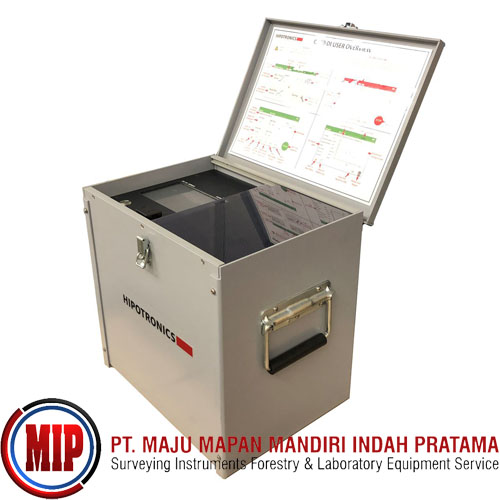

HIPOTRONICS OC60-DI Analog Oil Dielectric Tester

The OC60-DI Liquid Dielectric Tester accurately and reliably tests the dielectric strength of insulating liquids used in a wide variety of electrical apparatus. The rugged, lightweight, and portable design ensures years of safe and trouble-free operation both in the field and in the laboratory.

Lightweight and portable design
This model is designed to meet testing specifications from all parts of the world with test cells available for ASTM D877, ASTM D1816 and IEC 156 testing standards. The OC60-DI gives the user the ability to use pre-programmed standards in basic mode or create their own tests using custom mode. An internal digital kilovoltmeter automatically records the breakdown voltage for each test sample. Each test can be saved into the unit’s internal memory and transferred to a USB drive.

Features:
60kV Automatic Liquid Oil Dielectric Tester

Breakdown voltage accuracy of ± 2% of full scale
Automatic breakdown detection within 4μs of breakdown point
Digital kilovoltmeter
Pre-programmed test standards
Battery operated
Record and transfer test results and data analysis via USB2.0
7" color, touch screen display with adjustable brightness
Adjustable test parameters such as target voltage, ramp rate, dwell and wait time
Lightweight and portable design
Rugged and reliable construction
Multi-purpose for field and factory use
Safe operation with slide screen magnetic interlock
Additional test parameters such as temperature and humidity give users additional measurements

Benefits
Multi-purpose compact design for field and factory
Sturdy and Reliable for a long trouble-free life
User Friendly Touchscreen Interface
Battery Operated for testing in the field

Applications
Testing of insulation liquids in:
Transformers and Bushings
Switchgear
Capacitors
Hydraulics
