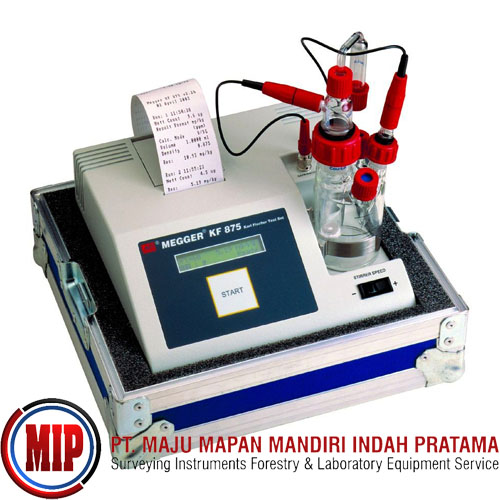

MEGGER KF875 Karl Fischer Moisture In Oil Test Sets

Optimised for testing insulating oils with a specific gravity of 0.875, the Megger KF875 simply requires the operator to press one button and inject a 1ml sample into the test cell.

The simple ‘one touch’ operation makes the KF875 so easy to use that it requires no specialist knowledge or training to use it effectively. Results are presented on the instrument display and on the integral printer in both micrograms of water and in milligrams per kilogram (parts per million, ppm).

Specification:
Titration method: Coulometric Karl Fischer Titration
Electrolysis control: Patented “ACE” control system
End point detection: AC polarisation
End point indication: Visual display / print out / acoustic beep
Measuring range: 1 μg – 10 mg water
Moisture range: 1 ppm – 100 ppm
Max. sensitivity: 0.1 μg
Max. titration speed: 2 mg per minute
Max. current: 400 ma
Drift compensation: Automatically controlled
Precision: 10-100 μg ± 3 μg, 100 μg - 1 mg ± 5 μg, above 1 mg ± 0.5%
Stirrer speed: Microprocessor controlled
Calendar / clock: Analysis time & date print out
Keypad/User controls: Non tactile membrane/display prompted menu
Display: 40 character alphanumeric backlit display
Printer: 42 character high speed thermal printer
Carry case: Standard
Power supply: 90-264 VAC, 47-63Hz, 12 V DC car adapter/internal battery
Battery life: 8 hours running time
Battery low: Display & print out indication
Dimensions: 250 x 245 x 120 mm
Weight: 3 kg (without carry case)
Megger Part No: 6111-636

Complette Package:
Megger KF875 Coulometric Karl Fischer Test Set for insulating oils
Titration Vessel
Detector electrode
Generator electrode
Drying tube
Carrying Case
Power Pack
Car adapter
Injection septa (10)
Glass syringe (1 ml)
Luer needle
Bottle of Molecular sieve
Stirrer bar
Funnel
