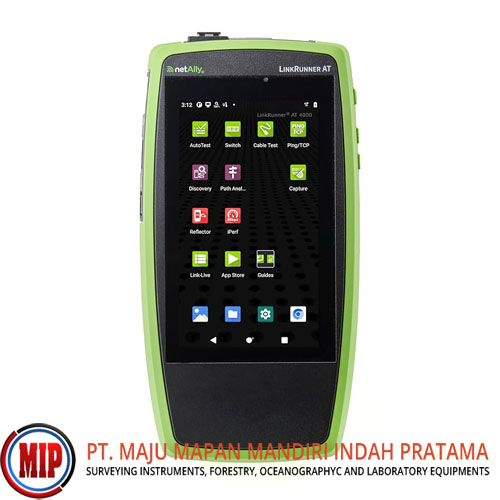

NetAlly LRAT-4000-KIT LinkRunner Advanced Network and Cable Tester

The NetAlly LRAT-4000 LinkRunner AT 4000 Advanced Cable and Network Tester is for use with Multigigabit NBASE-T and fiber Ethernet networks. It includes comprehensive network discovery and topology mapping with advanced diagnostics and problem detection for in-depth troubleshooting. Using network discovery and layer 2 and 3 path analysis, the LinkRunner AT 4000 offers comprehensive network visibility to help resolve issues impacting multiple devices – not just a single link – while still providing the automated tests for moves/adds/changes validation and troubleshooting that the LinkRunner AT family of test solutions is known for.

Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improve teamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management. Independent management plane via wired or Wi-Fi connection (with optional adapters) allows remote operation and result uploading separate from the network under test.

Key Features
Automatically discover and instantly generate topology map of networks using Link-Live reporting and analysis platform
Comprehensive AutoTest validates and troubleshoots all aspects of network connectivity and services including DHCP, DNS, response time of cloud, on-prem HTTP and FTP services
Verifies link speed/duplex for 10/100 Mbps and 1 Gbps, with detection of NBASE-T and Multigigabit 2.5G, 5G and 10 Gbps links
Discovers nearest connected switch name and port information via CDP/LLDP/EDP, including VLANs; monitors VLAN trunk traffic
Validates Power over Ethernet switching and cabling up to 90W 802.3bt with TruePower loading
Advanced twisted-pair cable tests for length, wiremap, and faults such as shorts, opens, mis-wires (split pairs, crossovers), fiber optic link signal strength power measurement and SFP diagnostics
Locate cable endpoints with optional WireView adapters
In-depth analysis tools like Path Analysis and line-rate packet capture help solve complex issues
Automate reporting/documentation and enable collaboration with test result uploads, management, and tester remote control via Link-Live

LinkRunner AT 4000 Testing Applications
Discovery – Discover network devices and common problems across multiple VLANs, plus generate Topology Maps in Link-Live
AutoTest and Profiles – Comprehensive network link test validates all aspects of network connectivity
Switch Test– Identifies nearest connected switch and critical configuration information
Path Analysis – Shows switch/router path to any connected device
Cable Test – Validate cabling for proper termination, test for length, common miswires, and distance to fault
Ping/TCP Test – Verify connectivity to on or off-network devices, ensure TCP port availability
Capture – Packet capture to 1Gbps for in-depth analysis
Reflector – Works with other NetAlly tools for network performance testing
Link-Live – Collaboration, reporting, and analysis platform for easy logging, documenting, and reporting of test activities
iPerf – Runs iPerf3 performance test to NetAlly Test Accessory or iPerf server endpoint to ensure adequate client bandwidth
Wi-Fi Connectivity Support – Requires optional USB adapter for on-the-go connectivity
Additional Tools and Diagnostics – Download apps from Link-Live app store to accomplish additional tasks

Include:
1 - LinkRunner AT 4000 Tester (LRAT-4000)
1 - AllyCare Support, 1 Year (LRAT-4000-1YS)
1 - Power Supply with Regional Power Plugs
1 - WireView Cable ID #1-6
1 - RJ-45 Coupler
1 - 850nm Multimode 1 Gbps SFP
1 - Holster
1 - Getting Started Guide
1 - Shoulder Sling Bag
