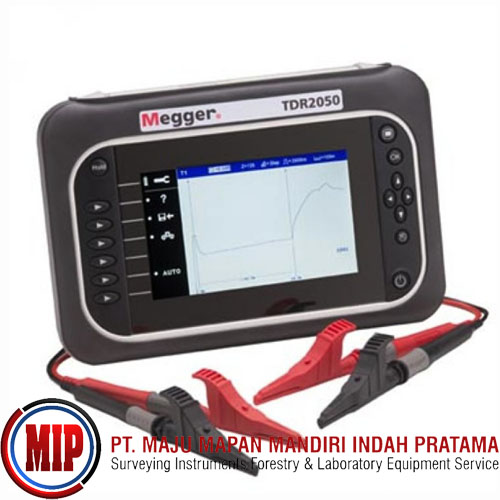

MEGGER TDR2050 Time Domain Reflectometer
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Megger TDR2050 Time Domain Reflectometer is a state of the art, dual channel, high resolution, compact Time Domain Reflectometer with a color screen for locating faults on paired metallic cables. The TDR2050 has a minimum resolution of 0.3ft/0.1m and a 65kft/20km maximum range depending on the velocity factor selected and the cable type.
The TDR2050 is the first TDR in this class to include a built-in 600V input protection filter. The ability to connect to potentially live circuits means a more flexible instrument suited for a wider range of applications. The TDR2050 is powered by Li-ion rechargeable battery batteries and comes complete with 2 pairs of mini-clip Test Leads.
The TDR2050 also incorporates a FindEnd function, which allows the user to automatically search the trace to identify the end of the cable under test. This is useful in situations where a fast cable length measurement is required.
Features:
CAT IV 600V input protection
Step and pulse TDR selections
Range up to 20000m with a minimum resolution of 0.1m
Distance dependent gain
±1% accuracy
Backlit graphics color LCD (800x480) display
IP54 rating
Step, DDG and FindEnd functions
Trace tagging
2ns pulse width
Power blocking filter built-in
What's In The Box:
(1) Retractable sheath fused test leads (1 pair)
(1) Dual power lead set with fused clips
(1) Download kit
(1) Carry case
(1) Power cable
(1) User guide CD
