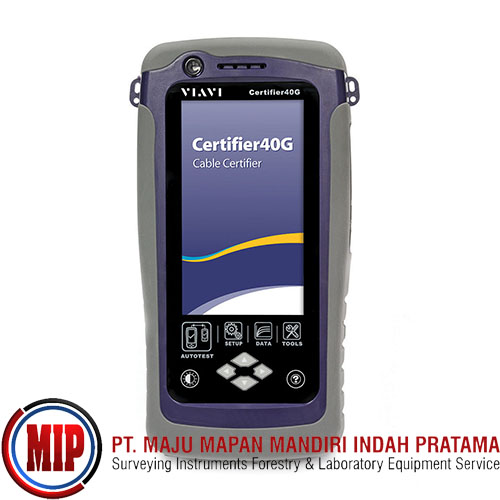

VIAVI Certifier 40G (NGC-4500-FA) Handheld Copper Cable Certifier

Features:
Touch two-ended control
Future proof 1600 MHz testing
Fastest CAT 6A/Class FA test
ReLevel IV accuracy over the full Class FA spectrum
Integrated planning software
Improve installer productivity up to 50 percent by eliminating unnecessary walking between local and remote units, with a Touch2 system that lets them view and analyze test results at both ends
Protect your investment with the most advanced tester in the market that certifies beyond TIA-568/ISO 11801 standards, with a 1600 MHz measurement frequency.
Quickly increase the productivity of new and experienced installers using the revolutionary large touch screen with intuitive user interface.

Revolutionary touch design, with intuitive touch screen at both ends makes using the JDSU NGC-4500 Certifier40G Cable Certifier the easiest cable tester ever. The full screen at both ends of the JDSU NGC4500 allows users in the field to minimize their walking time by initiating, configuring, and storing tests from either side of a link or channel. The JDSU NGC 4500's next-generation measurement engine can measure above and beyond the frequencies of current testers, certifying Class-FA frequencies with full Level IV accuracy. The JDSU NGC-4500 can measure frequencies for all current standards and future cabling standards required for copper cables.

Order Information:
JDSU NGC-4500-FA-NA Certifier40G Cable Certifier, Class FA copper kit with NA power cord (Class FA adapters not included)
JDSU NGC-4500-MM-NA Certifier40G Cable Certifier, Class FA and MM kit with NA power cord, (Class FA adapters not included)
JDSU NGC-4500-MMSM-NA Certifier40G Cable Certifier, Class FA, MM and SM kit with NA power cord (Class FA adapters not included)

Specifications:
Test Parameters
Supported frequency range: 1 to 1600 MHz.
TIA 1152 level IIIe and ISO/IEC 61935-1 Level IV accuracy

Supported Copper Cable Tests
Attenuation (Insertion Loss). Near-end crosstalk (NEXT) in pair-to-pair and power-sum
Attenuation-to-crosstalk ratio far end (ACRF), pair-to-pair and power-sum
Return loss
Loop resistance
Wiremap and shield
Cable length
Total propagation delay
Delay skew between pairs
Test Standards
TIA -568-C.2 and TIA 1152 Category 5, 5e, 6, 6A
ISO/IEC 11801, EN 50173 Class C, D, E, EA, F, FA

Power Supply:
Removable/rechargeable Li-Ion batteries - up to 8 hours continuous operation
AC power adapter 100−240 V AC
Dimensions
Size 232 x 126 x 86.7 mm (9.13 x 4.96 x 3.41 in)
Weight approx. 1.4 kg (3.0 lb) per unit

Memory
More than 500 MB (more than 2000 test results) of internal flash memory
1GB USB Flash Drive included for fl exible test record storage

Connectivity
Probe interface connector
RJ45 Ethernet port
USB host and device interfaces
Talk set interface: 3.5 mm stereo jack

Environmental:
Operating temperature: 0 to 40°C
Storage temperature: −20 to 60°C
Relative humidity: 10 to 80%
