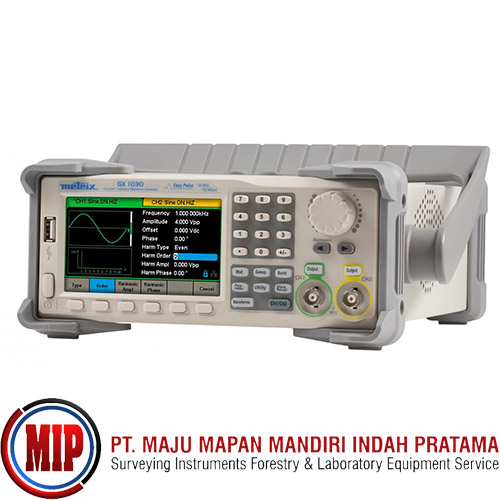

CHAUVIN ARNOUX GX1030 Function Generator
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Chauvin Arnoux GX1030 2 Channels, 30 MHz, Function Generator. The GX 1030 is a 2-channel arbitrary function generator from 0.01 mHz to 30 MHz which provides much greater accuracy and frequency stability than a traditional generator. The GX 1030 generates precise, varied, simple or complex signals: sine, square, triangle, ramp, pulse, white noise, arbitrary signal (196 waveforms pre-installed). The GX 1030 offers internal and external modulations, as well as linear and logarithmic sweep functions. The BURST function lets you choose the number of cycles per time period. This function allows even more accurate analysis, as well as the detection of very brief events. It is equipped with a built-in frequency meter covering a range from 100 mHz to 200 MHz. The harmonics function can be used to generate up to 16 even or odd harmonic orders, with amplitude and phase. This ergonomic instrument is equipped with a large LCD screen (960x 540 mm) which is exceptionally easy to read due to its 4.3" TFT high-contrast colour display. As it is programmable, 2 PC software products are available for download to create arbitrary signals: SX-GENE and EasywaveX.
Features:
Part Number: GX1030
Channel: 2 Channels
Frequency range: 30 MHz
Resolution / Sampling : 14 bits / 150 MS/s
Large 4.3-inch high-contrast TFT colour screen ( 960x540 mm)
Frequency range from 0.001 mHz to 30 MHz for classic and arbitrary signals
DDS technology on 2 outputs (coupling and duplication) – combination of functions
Signals sampled at 150 MS/s with 14-bit resolution
Analogue and digital modulation types: AM & FM, FSK & ASK, PSK and PWM
Practical SWEEP and BURST functions
Frequency meter from 100 mHz to 200 MHz
EasyPulse technology for generating low-jitter pulses
TrueArb technology to eliminate jitter and signal distortion
Programmable via a USB or Ethernet link and storage on USB key
PC software for creating arbitrary signals: SX-GENE and EasywaveX
Include:
(1) GX1030 - Function Generator
(1) 2P+E mains power cable
(1) USB cable
(1) Quick Start Guide on paper in 5 languages
(1) User’s Manual
(1) Software available for download
