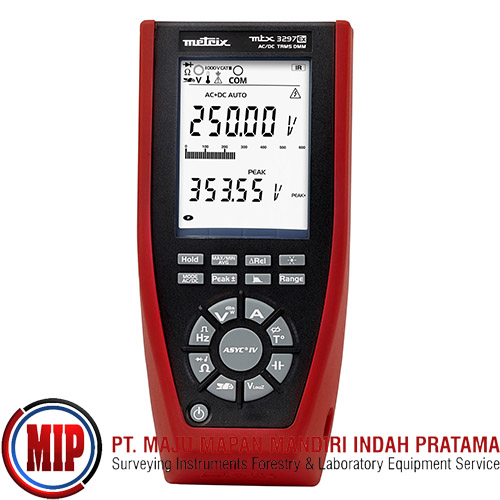

CHAUVIN ARNOUX MTX-3297EX Metrix Intrinsically Safe Digital Multimeter

Chauvin Arnoux MTX 3297EX [MTX3297EX] 20A AC/DC Metrix Intrinsically Safe ATEX Digital Multimeter. The Chauvin Arnoux (Metrix) MTX 3297Ex is an intrinsically safe TRMS digital multimeter, purpose-built for use in explosive environments. It's certified for gas (IIC) and dust (IIIC) zones and M1 mining applications. With a 60,000-count display, TRMS AC+DC capability, and a 100 kHz bandwidth, it's a reliable choice for electrical measurements in hazardous Ex zones. The MTX 3297Ex is an outstanding multimeter with approvals and certifications for the most critical risk levels. It meets stringent requirements and boasts an impressive IP67 rating, ensuring protection against liquids and dust, and the rugged casing provides shock protection. This multimeter is designed for high-performance industrial use and adheres to the IEC 61010-2-033 standard, making it suitable for electrical work on 1000 V CAT III and 600 V CAT IV installations.

Features:
Part Number: MTX3297EX
V DC Measurement range 0.001 mV to 1000.0 V DC
V AC, V AC+DC Measurement range 0.001 mV to 1000.0 V AC or AC+DC
A DC Measurement range 0.01 µA to 10.00 A DC (max. 20 A/30 s)
A AC, A AC+DC Measurement range 0.01 µA to 10.00 A AC or AC+DC (max. 20 A/30 s)
Voltage, current and resistance measurements
Audible continuity, diode test, etc.
Capacitance and temperature
TRMS AC+DC acquisition
60,000-count display
Resolution from 1 μV for voltage and 0.01 μA for current
Min, MAX, Peak+ and Peak- functions
ΔX differential and ΔX /X relative functions
Low-pass filter for measurement of PWM signals
VLowZ low-impedance DC voltage in the presence of disturbance voltages
Unrivalled ergonomics and rugged design
Complies with the applicable European Directive 2014/34/EU concerning ATEX explosive atmospheres
Ergonomic, rugged, practical, high-performance and simple to use
Current, voltage, resistance, diode, capacitance and frequency measurements
Accurate temperature measurement with Pt100 or Pt1000 sensors
Large 5.7-inch digital screen (main digit height 14 mm) up to 60,000 cts
Multi-value display (2 measurements simultaneously), backlighting for easy reading in dark areas.

Include:
(1) MTX 3297EX - Intrinsically Safe ATEX Multimeter
(1) Set of 2 Straight/Elbowed cables, 1.5m long
(1) Set of Test Probes
(1) Quick Start Guide (18 languages)
(1) User Manual (free download via QR code/link)
(1) Safety Manual
(1) Set of 4 x 1.5V AA batteries/FR6 Li-FeS2 Ex/IEC Ex-qualified batteries (pre-installed in the instrument)
