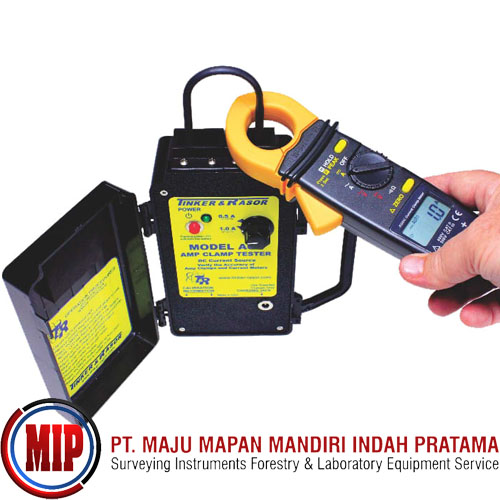

TINKER & RASOR ACT-Amp Clamp Tester

Rp. 28,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The Model ACT is designed to provide an accurate DC current output to verify the accuracy of commercially available current meters and amp clamp meters. The ACT is designed for use in the field as well as lab settings. Anywhere an amp clamp or current meter is used, the ACT can be used to verify the current meter.

The Model ACT comes with the instrument, housed in a rugged plastic box. The current loop is stored inside the lid of the instrument and also has banana plugs which fit into the front (top) of the instrument case for use with amp clamps.

Amp Clamp Tester / Verifier
Very accurate DC current output for verifying clamp meters, multimeters
1.0 Amp and 0.5 Amp output
Accuracy - 1.0 Amp: +/- 5%; 0.5 Amp: +/- 2.5%
Calibration certificate included and sticker for calibration date, due date
Compact tester for ease of use in field
Batter operated (rechargeable)
Use with any DC amp clamp
Use with most DC current meters
Current loop stores inside case

In The Box
Instrument with battery (installed)
Current Loop, stored inside instrument cover
Charger
Instruction manual
Warranty Card
Calibration document and sticker
