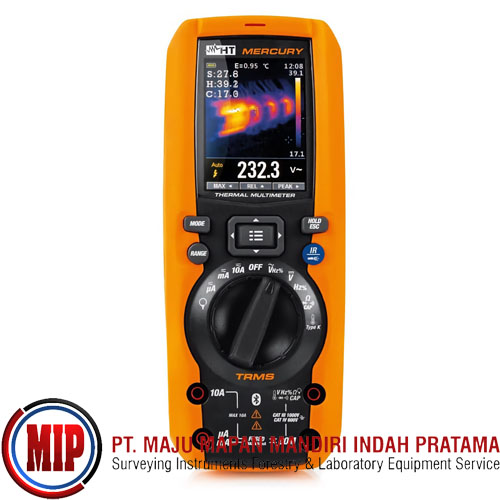

HT Instruments MERCURY TRMS DMM Multimeter w/IR Camera
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
HT Instrument MERCURY is a TRMS digital multimeter capable of measuring AC/DC voltage up to 1000V, AC/DC current up to 10A as well as resistance, continuity test, diode test, frequency, capacitance and temperature with K-type probe. Other major functions include AC+DC mode taking into account DC components overlapping AC signals and current measurement with standard and flexible transducer clamps (provided accessory F3000U). A camera with 80x80pxl resolution is built inside to get simultaneous readings of thermal and electrical values for the item under test. MERCURY is provided with Data Logger function capable of carrying out and saving recordings of every parameter as well as displaying the values’ diagram. Snapshots can be saved into BMP format inside a micro SD card supplied as accessory and Bluetooth permits connection with mobile devices (tablet/smartphone) through HTMercury APP creating reports to share measuring results. The instrument was designed in compliance with safety standards IEC/EN61010-1 with double insulation protection according to CAT IV 600V or CAT III 1000V. MERCURY is equipped with analogue bargraph LCD and each function can be selected by rotary switch. Additional functions include HOLD to keep displayed data, MAX/MIN, PEAK and Auto Power OFF to save the internal rechargeable battery.
Features:
RMS DMM with infrared camera
Data logger function and real-time display of graphs of measured data
DC, AC TRMS, AC+DC TRMS voltage up to 1000V
DC, AC TRMS, AC+DC TRMS current up to 10A
DC, AC TRMS, AC+DC TRMS current by means of external clamp transducer
Measurement of frequency and duty cycle
Resistance and buzzer for continuity test
Measurement of capacitance
Diode test
Temperature measurement by means of external K-type probe
MAX/MIN/PEAK/HOLD/REL functions
Selectable sampling rate: from 1s to 15min
Built-in white-light torch
TFT high-contrast colour display (320x240pxl)
6000 measuring spots
Measured data saving on micro SD card
In The Box
F3000U Flexible clamp with full scale 30/300/3000A AC
4413-2 Couple of red/black 4mm, 90° professional test leads
BATMCY Spare part Li-ION battery 7.4V 1500mAh
A0MCY Adapter multiplug for MERCURY with base charger
Micro SD card 8GB,10x
B0MCY Carrying case
Alkaline battery type AAA IEC LR03, 2pcs
Type K bead probe + adapter
User manual
Calibration certificate ISO9000
