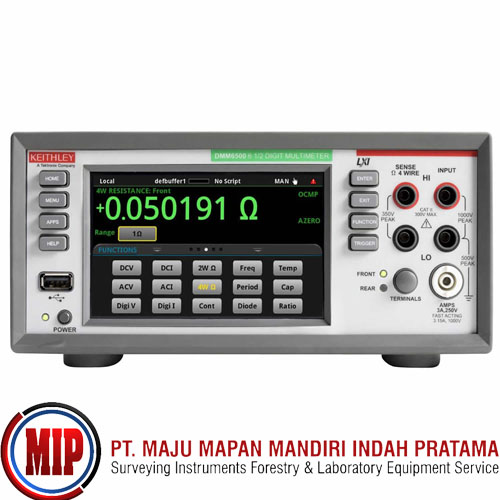

KEITHLEY DMM6500 6 1/2 Digit Bench Digital Multimeter
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The The DMM6500 is a modern bench/system DMM delivering more measurement functionality, best-in-class measurement insight, and a price that will not break your budget. The most recognizable feature of the DMM6500 is the large 5-inch (12.7 cm) capacitive touch screen display that makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. Beyond its display technology, the DMM 6500 superior analog measurement performance delivers 25 PPM basic DCV accuracy for one year and 30 PPM for two years, potentially allowing you to extend your calibration cycles.
The DMM6500 is equipped with all the measurement functions you would expect in a bench multimeter, so there’s no need to buy additional measurement capabilities. Its 15 measurement functions, including capacitance, temperature (RTD, thermistor, and thermocouple), diode test with variable current sources, and up to 1 MS/sec digitizing are now included.The digitizing function can be used for voltage or current and is especially useful in capturing transient anomalies or to help profile power events such as the operating states of today’s battery operated devices. Current and voltage can be digitized with a programmable 1 MS/sec 16-bit digitizer, making it possible to acquire waveforms without the need for a separate instrument.
Features:
15 measurement functions, including capacitance, temperature and digitizing
Expanded measurement ranges: 10pA to 10A and 1 mOhm to 100 MOhm
Large 5-inch (12.7 cm) multi-touch capacitive touchscreen with graphical display
Large internal memory stores up to 7 million readings
Multiple language modes: SCPI, TSP scripting, Keithley 2000 SCPI emulation, Keysight 34401A SCPI emulation
Two-year specifications allow for longer calibration cycles
Standard USB-TMC and LXI/Ethernet communication interfaces
Optional user-installable communication interfaces (not included): GPIB, TSP-Link, and RS-232
Capture voltage or current transients with 1 MS/sec digitizer
USB host port for storing readings, instrument configurations and screen images
Include:
1 - 6-1/2 Digit Touchscreen Bench/Production Digital Multimeter (DMM6500)
1 - Pair of General Purpose Test Leads, 1000V Cat II (1757)
1 - Type-A-to-Type-B USB Cable, 1m (USB-B-1)
1 - Traceable Calibration Certificate
