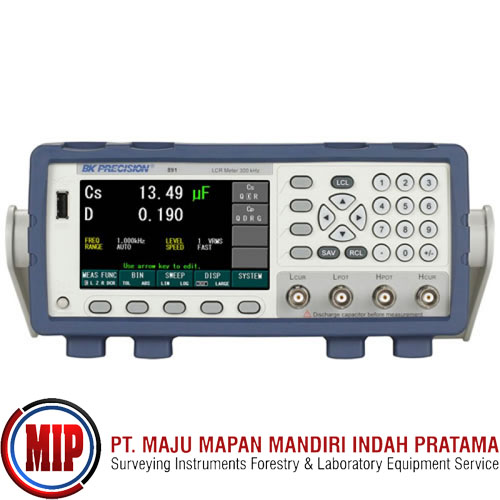

BK Precision 891 Digital Bench LCR Meter
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The 891 Bench LCR meter is capable of measuring inductors, capacitors, and resistors at DC or from 20 Hz to 300 kHz. The instrument's compact 2U half-rack form factor is suitable for the bench or rack mount installation. A large 4.3" color display with all important parameters and measurements visible on one screen makes this meter easy to operate.
The instrument's convenient bin sorting function and frequency sweep function enables quick sorting and characterization of components. Standard USB, GPIB, and LAN interfaces enhance your productivity by providing remote control capabilities to perform daily operations in production, quality control, and laboratory environments.
Features:
Measurement parameters: L, C, R, Z, G, B, Y, D, Q, θ, DCR
0.05% best impedance accuracy
Fully adjustable test frequency from 20 Hz to 300 kHz with 4-digit resolution
0.5 Vrms and 1 Vrms selectable test levels
Adjustable measurement speed for fast readout or better accuracy
300-point linear and logarithmic sweep function
Bin sorting function (9 primary, one secondary, and one out-of-spec bin)
Save/recall up to 100 setups (10 internal) including 1000 measurements and screenshots
Standard USB (Virtual COM), GPIB, and LAN interface for remote control
What's in the Box:
(1) User Manual
(1) Power Cord
(1) TL 889A 4-wire Kelvin Clips test lead
(1) Certificate of Calibration
(1) Test Report
