CHAUVIN ARNOUX CA6545 Insulation Tester

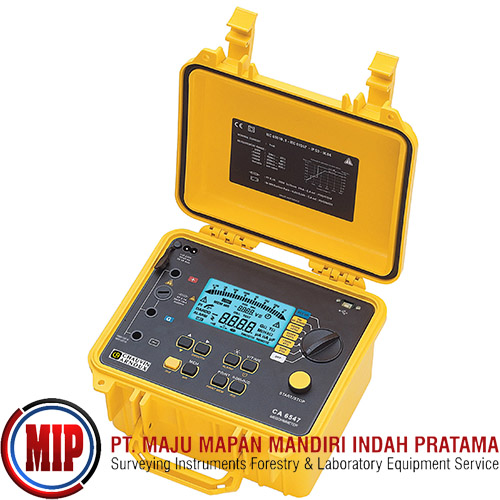

Chauvin Arnoux CA 6545 [P01139711] 500V / 1000V / 2500V / 5000V Digital Insulation Resistance Tester. Digital insulation meter for 5000 V.The C.A 6545 is the ideal instrument for quantitative and qualitative testing of insulations in its robust housing suitable for construction. At the same time as the insulation resistance, the tester also indicates voltages, capacities and residual currents.Technical data and functions:Comprehensive measurement range: 10 kΩ to 10 TΩFour specified test voltages: 500, 1000, 2500 and 5000 V.Test voltage from 40 V to 5100 V can be programd in 10 V or 100 V stepsLarge format, illuminated LCD display for numerical values and bar graphQualitative insulation test with automatic calculation OF parameters, PI, DD and recording of curve R(t)Numerous functions: Programmable test duration, limitation of the test voltage to non-hazardous values, smooth, programmable alarms, etc.Power supply: NiMH rechargeable batteries for approx. one month operating time with 10 CURRENT and 5 PI measurements per dayInstallation category: IEC 61010-1 cat III 1000 V or cat I 2500 V and IEC 61557Dimensions 270 x 250 x 180 mm; weight 4.3 kg.



Features:

Part Number: P01139711

Minimum Test Voltage: 40V

Maximum Test Voltage: 5100V

Maximum Insulation Resistance Measurement 10000GΩ

Wide testing range from 30kΩ to 10TΩ

4 fixed test voltages 500, 1000, 2500 and 5000

Programmable test voltage positions

Large size LCD screen

Digital display + bargraph

Automatic calculation of DAR, PI, DD ratios

Tracing of R(t) curve

Programmed test duration

Lock down test voltages

Smooth function

Programmable alarms

Rechargeable NiMH batteries last for 30 days



Include:

(1) CA6545 - Digital Megohmmeter

(1) Carrying Bag

(2) 3m Safety Leads with HV Plug and HV Crocodile Clip (Red/Blue)

(1) Guarded Safety Lead (0.35m) with HV Plug and HV Plug with Rear Connection

(1) Lead with Rear Connection (Blue, 0.35m)

(1) Mains Power Cable (2m)

(1) Simplified Operation Manual

(1) Operating Manual in 5 Languages
