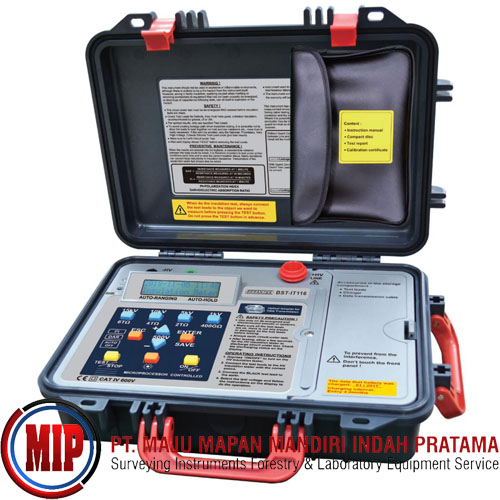

BESANTEK BST-IT116 (15kV) Digital High Voltage Insulation

Rp. 65,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

BESANTEK BST-IT116 Will Applied For Testing The Insulation Resistance Of Cables, Motors, Generators, Transformers, Insulators, High-Pressure Switches, Wiring Installations.....Etc.

Tests insulation resistance up to 6T
Short-circuit current up to 5mA
Microprocessor controlled
30 Insulation test voltages:
500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV, 3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV,
8.5kV, 9kV, 9.5kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV, 12.5kV, 13kV, 13.5kV, 14kV, 14.5kV, 15kV,
AC / DC Voltmeter (600V)
PI (Polarization Index) indication
DAR (Dielectric Absorption Ratio) indication
Auto-ranging on all insulation ranges
Backlight function
Bar graph indicates test voltage, rise and decay can be observed
Menu driven
Visual and audible warning if external voltage is present. (30Vac or 30Vdc)
Auto-hold function to freeze the reading
Overload protection
Adjustment for testing time (duration) : 1~30 minutes
Auto-off
Calendar
Optical USB to RS-232 data transmission
200 measurement results can be saved in the memory and recalled on the display.
