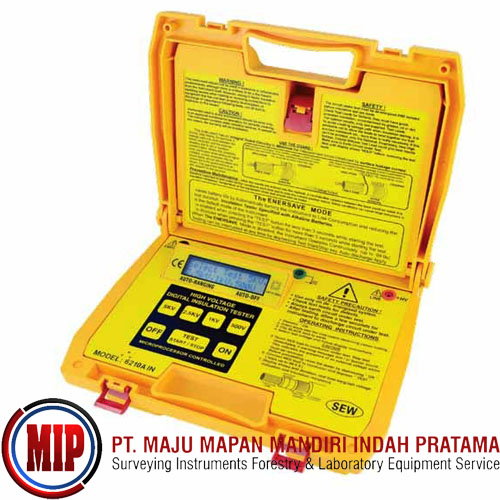

SEW 6212AIN Digital HV Insulation Tester

Rp. 38,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Digital (Up to 10kV) High Voltage Insulation Tester.
Microprocessor-controlled.
Test voltage (DC V): from 0.5kV to 10kV (0.5kV increment steps).

Microprocessor-controlled.
2 ×16 characters; large intelligent LCD module.
20 Insulation test voltages 500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV, 3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 5kV, 9kV, 9.5kV, 10kV.
Ener-Save™ feature to extend battery life.
Bargraph indicates test voltage; rise and decay can be observed.
Visual and audible warning if external voltage is present(>500Vac or Vdc.)
Insulation resistance; auto-ranging on all ranges.
Overload protection.
Low battery indicator (read time battery voltage measurement).
Measures insulation time duration of the test.
Low battery consumption.
Better than 10% accuracy on all ranges.
Auto-off.

Insulation Resistance
Test voltage (DC V): 0.5kV to 10kV (0.5kV increment steps)
Measuring ranges (Auto-Ranges): 25GΩ / 0.5kV, 25GΩ at 0.5kV → 500GΩ at 10kV
Accuracy: ± 3% rdg ± 1 dgt
Output power limit: 50uA to 100uA (1W)
Live warning: >500V AC

General
Operating-temperature: 0°C to 40°C
Operating-humidity: 85% Max. relative humidity
Dimensions: 330(L) × 260(W) × 160(D) mm
Weight (battery included): Approx. 3500g
Power source: 1.5V (AA) × 8 Alkaline batteries

Safety Standard
EN 61010-1 CAT III 600V
EN 61326-1

Accessories
Instruction manual,
Test leads,
Batteries.
