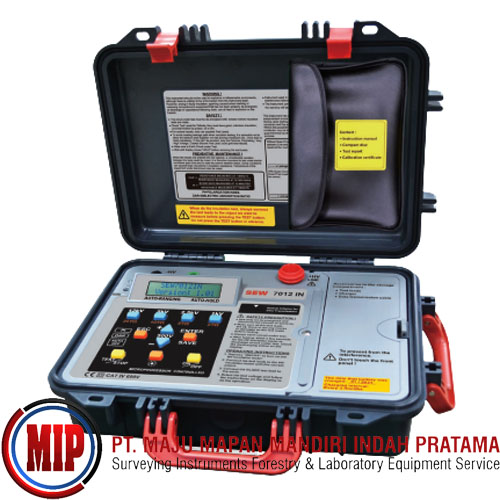

SEW 7012IN Digital HV Insulation Tester

Rp. 43,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Digital (12kV) High Voltage Insulation Tester.
Insulation test voltage up to 12kV.
Microprocessor-controlled.
Protection class: IP66 (Lid closed)
For testing the insulation resistance of cables, motors, generators, transformers, insulators, high-pressure switches, wiring installations etc.

Protection class: IP66 (Lid closed).
Test insulation resistance up to 20TΩ (20000GΩ).
Short-circuit current up to 5mA.
Microprocessor controlled.

24 insulation test voltages:
500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV, 3.5kV, 4kV,
4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV,
8.5kV, 9kV, 9.5kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV.

AC/DC Voltmeter (600V).
PI (Polarization Index) indication.
DAR (Dielectric Absorption ratio) indication.
Auto-ranging on all insulation ranges.
Current measurement.
Backlight function.
Menu driven.
Visual and audible warning if external voltage is present. (≥30Vac or ≥30Vdc).
Auto-hold function to freeze the reading.
Overload protection.
Adjustment for testing time (duration): 1~30 minutes.
Auto-off.
Calendar.
Optical USB to RS-232 data transmission.
200 measurement results can be saved in the memory and recalled on the display.

Accessories
Instruction manual,
Test leads (AL-58HV, AL-30AG,AL-30HB),
Data transmission cable CA-232,
Compact disk (CD) for PC interface,
Alligator clips (AL-23CA),
Charger (CHA-7015),
Test report.
