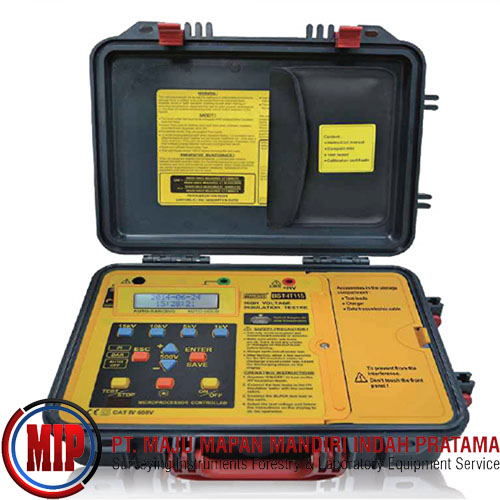

BESANTEK BST-IT115 (15kV) High Voltage Insulation Tester

Rp. 55,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Besantek Digital High Voltage Insulation Tester is designed to evaluate Wires and Cables for proper Insulation Tolerances.

Features:
Test insulation resistance up to 2 TOhm (2000GOhm).
Short-circuit current up to 5mA.
Microprocessor controlled.
30 insulation test voltages : 500V, 1kV, 1.5kV, 2kV, 2.5kV,3kV, 3.5kV, 4kV, 4.5kV, 5kV,5.5kV, 6kV, 6.5kV, 7kV, 7.5kV,8kV, 8.5kV, 9kV, 9.5kV, 10kV,10.5kV, 11kV, 11.5kV, 12kV, 12.5kV,13kV, 13.5kV, 14kV, 14.5kV, 15kV.
AC/DC voltmeter.
PI (Polarization Index) indication.
DAR (Dielectric Absorption ratio) indication.
Auto-ranging on all insulation ranges.
Backlight function.
Bargraph indicates test voltage, rise and decay can be observed.
Menu driven.
Visual and audible warning if external voltage ispresent. (=30Vac or =30Vdc).
Auto-hold function to freeze the reading.
Overload protection.
Adjustment for testing time (duration) : 1~30 minutes.
Auto-off.
Calendar.
Optical USB to RS-232 data transmission.
200 measurement results can be saved in the memoryand recalled on the display.
Safety standard : EN 61010-1 CAT IV 600VEN 61010-2-030 EN 61326-1

What's In The Box:
(1) Test Leads
(1) Alligator Clips
(1) Data Transmission Cable
(1) Charger
(1) Test Report
(1) Instruction Manual
(1) CD For PC Software
