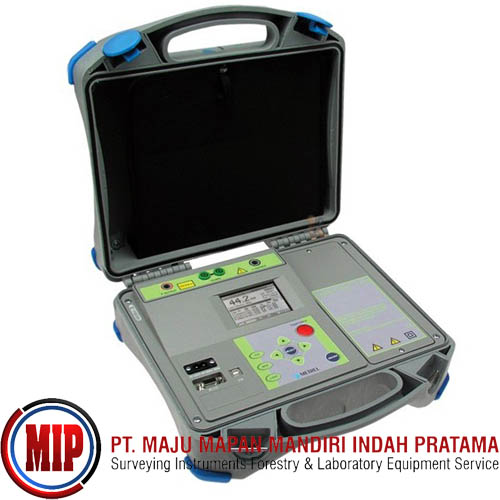

METREL MI3200 TeraOhm 10Kv Insulation Tester
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Metrel's MI3200 is a comprehensive insulation, voltage and fault-finding device that is designed to speed up testing and allow safe procedures to take place at all times.
The MI3200 is an ideal product for testing insulation resistance of rotating machinery and cables, production line periodic testing and maintenance, troubleshooting and analysis of insulation problems, diagnostic testing and can also be used to carry out evaluations in high noise environments such as voltage substations or switch yards.
Testing on the MI3200 is automated, allowing the device to calculate PI, DD and DAR with automated resistance ranging (AR) all displayed in one comprehensive measurement. It also includes a suite of faulty finding functions, allowing the user to program a step-voltage function and withstanding voltage test functions.
This device also features generally test voltage range between 500-10000V (10kV), allowing it to measure insulation resistance up a high threshold of 10TΩ. Voltage levels can be stepped up gradually through increments of 25V when using a ramp test.
The MI3200 also includes built-in memory, allowing information to be stored on the device and then downloaded directly via the built-in RS232/USB ports which are integrated into the tester's body.
Features:
Insulation resistance measurements up to 10TΩ
Test voltage range of 500 to 10000V
Voltage stepping in increments of 25V
Voltage ramp test
Automatic discharge
Calculation of DD, DAR and PI
Step voltage testing
Withstanding voltage testing
Timer
Leakage current measurements
Capacitance measurements
Short circuit/charge current functions
Guard terminal
Auto adjustment function
Audible warnings
Auto ranging
Voltage measurements from 600V AC to DC
Built inside its own protective carrying case
Memory with download functions
R(t) graphing function for plotting real time resistance on a time graph
What's In The Box:
(1) Metrel MI3200 TeraOHm 10kV Insulation Tester
(1) Mains Cable
(1) 2m 10kV Shielded Test Lead with Tip
(1) 2m 10kV shielded Test Lead (Black and Red)
(1) 10kV Alligator Clips (Black/Red)
(1) 2m Guard Test Lead with Green Alligator Clip
(6) 1.2V NiMH Batteries
(1) Handbook of "Modern Insulation Testing" on CD-ROM
(1) Instruction Manual on CD-ROM
(1) Product Verification Data
