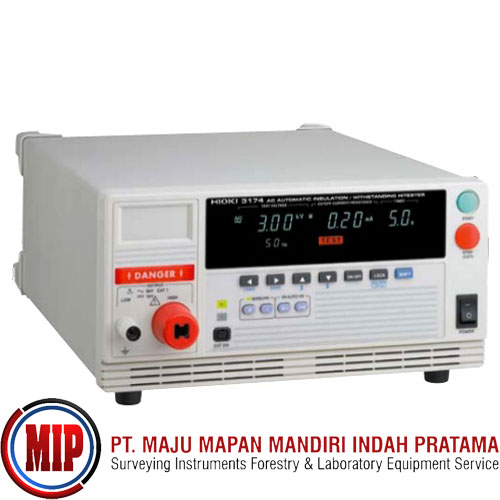

HIOKI 3174 AC Automatic Insulation / Withstanding

The effects of test lead wire breaks, erroneous test results caused by faulty contact, and fluctuations in test voltage caused by variations in the instrument’s supply voltage on withstanding voltage and insulation resistance testing are well known. The Hioki 3174 & 3174-01 AC Automatic Insulation/ Withstanding HiTESTER is a low-cost solution featuring contact check functionality as well as a stabilized power supply to prevent the reduced test reliability that can result from these issues. To streamline production line test processes, the HiTESTER also features configuration of test parameters via RS-232C (GP-IB) and reading of parameters from the EXT I/O interface

Features:
Continuous testing of insulation (500/1000 V) and withstand voltage (100 VA transformer capacity)
Full remote operation when used in combination with the Safety Test Data Management Software 9267
Save up to 8 test settings each for the withstanding and insulation testing modes
Precise test voltage without power voltage dependency is generated using the PWM method
Contact check function improves test reliability
Judgment output at forced stop
Continued analytical testing after FAIL judgments
Ramp timer function
True effective value display
Eliminate the effects of supply voltage fluctuations
Delay timer function
Continuous full-auto withstanding voltage and insulation resistance testing

What's in the Box:
(1) High-Voltage Test Leads 9615 (1 each high-voltage & return)
(1) Power cord
(1) Disconnection prevention plate
