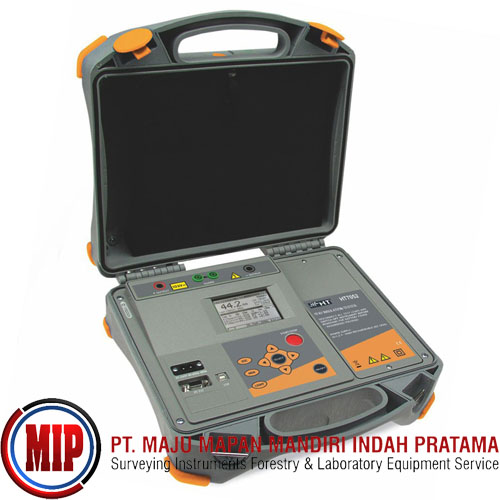

HT Instruments HT7052 (10KV) Insulation Tester
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
HT7052 is a portable battery/mains powered test instrument intended for the testing of insulation resistance by using high test voltages of up to 10kV. It is a professional high voltage insulation tester with added diagnostics tools such as Polarization Index (PI), Dielectric Absorption Ratio (DAR) and Dielectric Discharge (DD). HT7052 is specially well suited for: power transformers, measuring transducers in distribution networks, testing insulation resistance of rotating machinery and cables, production line periodic testing and maintenance, troubleshooting and analysis of all kinds of insulation problems, etc. Because of its robustness (CAT IV protection), it is best suited for industrial environment. A dot matrix LCD offers easy-to-read results and all associated parameters. The operation is straightforward and clear to enable the user to operate the instrument without the need for special training. Test results can be stored on the instrument and transferred to the PC for further analysis.
Features:
Insulation resistance with test voltage from 500V to 10kVDC
Measurement range up to 10TOhm
Programmable timer from 1s to 30min
Diagnostic test on materials (PI, DAR, DD)
Insulation resistance with “ramp” test
Withstanding test up to 10kVDC
DC/AC voltage up to 600V
Capacitance measurement of device under test
Automatic discharging of device under test
GUARD terminal for compensation of surface currents
LCD display with backlight
Internal memory for saving results
Recall saved results at display
RS-232 and USB interfaces for PC connection
Rechargeable internal battery
What's in the Box:
(1) Red test lead 10kV, 2m
(1) 10kV protection test lead, 2m, 2 pcs
(1) 10kV protected alligator clip, 2 pcs
(1) Green guard test lead
(1) Green alligator clip
(1) Power cord
(1) USB cable
(1) RS-232 cable
(1) Windows software TeraView
(1) Rechargeable battery 1.2V NiMH LR20, 6 pcs
(1) User manual
(1) ISO9000 calibration certificate
