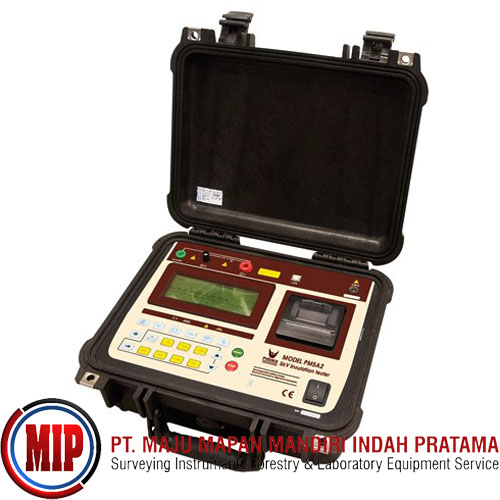

PHENIX Technologies PM5A2 5KVDC Insulation Analyzer
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
One of the most complete and sophist- icated digital insulation testers available with proven technology to provide safe, reliable and accurate measurements of insulation resistance up to either 5 TΩ or 10 TΩ. Powerful software allows for further analysis of tests results, including features such as graphical representation and automatic report generation.
A state-of-the-art microprocessor controls the equipment operation and enables the incorporation of advanced features which make measurements easier: auto-range selection, 4000 readings memory, AC/DC voltmeter, automatic measurement of Absorption Index and Polarization Index, leakage current and capacitance measurement, timer enabling programming of test duration, configurable Pass-Fail test, Step voltage test, built-in printer, real time clock and calendar.
Built-in chronometer, indicating elapsed time, in minutes and seconds, since the test started, up to 90 minutes.
Measured values are transmitted through the USB interface and are print- ed in the built-in printer as a registration of the performed test. Furthermore, the measured values are stored in a non- volatile internal memory. Up to 4000 measurements may be stored, to be transferred afterward to a computer. The software allows a further analysis of the test results, including a graphical representation and automatic report generation. The real time clock and calendar, and the sequential test number, facilitates the identification of each test, and the organization of a predictive maintenance system by trend analysis.
Feature
Microprocessor-controlled
Auto-range
Digital & Bargraph reading
Chronometer up to 90 minutes
Built-in printer
Real time clock and calendar
4000 readings memory
USB interface
Software for data management
Rechargeable battery (LifePO4)
IP54 protection
High voltage indicator
Automatic discharge of potential
What's in the Box:
(2) Measuring test leads
(1) Guard test lead
(1) AC adapter
(1) USB cable
(1) Protective bag
(1) User guide
(1) Software
