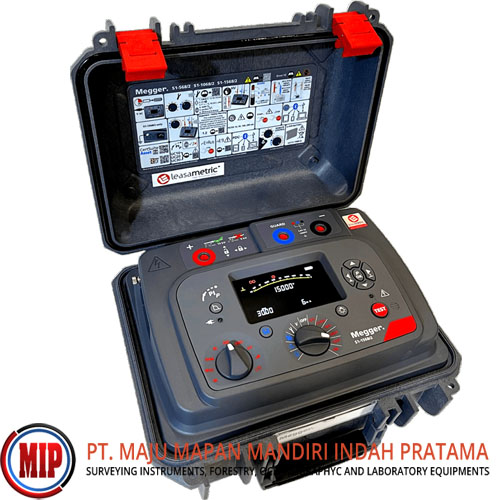

MEGGER S1-568-2 5KV Insulation Resistance Tester
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Megger Expert Range combines advanced diagnostic capabilities, superior noise immunity, and increased performance where other testers may struggle. Three models are available, each with a different maximum test voltage: 5 kV, 10 kV, and 15 kV. The range has a noise rejection of 8, improved software filtering, and is rated for use in environments up to 1000 kV, and delivers a burn/charge current of up to 6 mA.
They include insulation resistance (IR), dielectric absorption ratio (DAR), polarisation index (PI), dielectric discharge (DD), step voltage (SV), and ramp testing. When paired with Meggers PowerDB software, users can perform polarisation/depolarisation current (PDC) analysis and streamline test data reporting. Bluetooth connectivity facilitates wireless data transfer and smooth integration into digital workflows.
All three models also include Meggers' PI Predictor technology, which reduces the time required for polarisation index tests by more than half. The guard terminals minimise the impact of surface leakage currents without sacrificing accuracy, and the unit's ergonomic and rugged design ensures reliability in field conditions where performance is critical.
Product Range
Megger S1-568/2 Expert Range Insulation Resistance Tester, 5 kV
Megger S1-1068/2 Expert Range Insulation Resistance Tester, 10 kV
Megger S1-1568/2 Expert Range Insulation Resistance Tester, 15 kV
Key Features
RE>Act mode enhanced accuracy and safety
PI predictor function (PIp)
PDC test capability
Up to 8 mA noise rejection with Advanced adaptive filter
Measures up to 35 TΩ
Safety rated up to CAT IV 1000 V to 4000 m
Unique dual-case design - additional user protection
Operates from battery or AC mains supply
Compatible with CertSuite Asset
What's Included?
Choice of Tester
Quick Start label
Power lead
Screened USB cable with filters
Remote control indicator beacon
5 kV, 3 m x 3, medium insulated clips (S1-568/2 and S1-1068/2 only)
10 kV, 3 m x 3, large insulated clips (S1-1068/2 only)
15 kV, 3 m x 3, X-large insulated clips (S1-1568/2 only)
