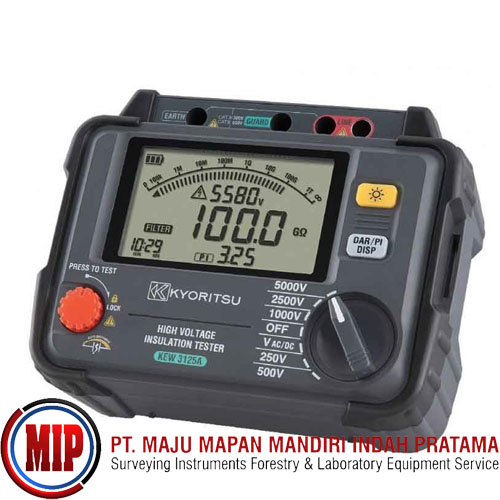

KYORITSU 3125A 5KV Digital Insulation Tester

Rp. 16,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Wide range measurements from 500V to 5000V and up to 1000GÎ © .
Large digital display with Bar Graph indication and back light.
Polarization Index measurement ( PI) .
Timer measurement function.
Indication of Output voltage and Discharge voltage.
Auto-discharge function and Voltage output warning function.
Auto power off and Battery Check.
Safety standard IEC 61010-1 CAT.III 600V

Specification:
Range : 500V-1000V-2500V-5000V
Voltage Measurement : AC/ DC V ; 30-600V ; 50/ 60Hz
Measuring range : 500V : 0.0 - 99.9M©
Accuracy : 5% rdg± 3dgt
Short Current : 1.3mA approx
Maximum Display : 999 Counts( 1000counts only at 1000G© )
Current Consumtion : About 1000mA( During Measurement)
Withstand Voltage : 5320V AC for 5 seconds
Power Supply : DC12V : R14 x 8
Dimensions : 205L x 52W x 94D mm
Weight : 1.8 Kg approx

Included Accessories: 7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m), 8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case), LR14 (Alkaline battery size C) × 8, Instruction manual
