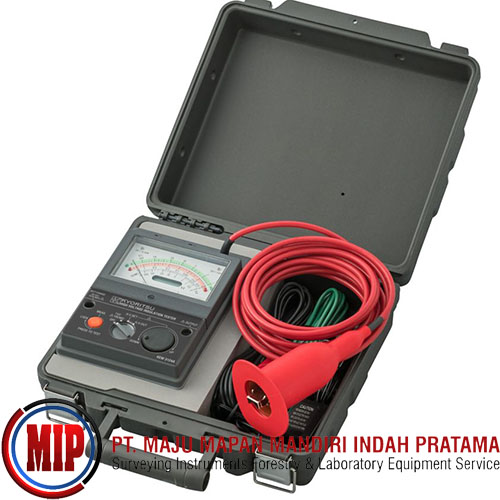

KYORITSU 3124A (10KV) Analog Insulation Tester

Rp. 36,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Kyoritsu 3124A Offers

Features

Permits a wide range of insulation testing up to 100 GΩ at variable test voltage from 1 to 10kV

DC voltage output for recorders

Output voltage is shown on the digital display

After tests, automatically discharges the charges stored in the circuit under test

Operated by rechargeable Nickel-Cadmium batteries

Kyoritsu 3124A Specifications

DC Test Voltage 1 to 10 kV variable / 1000 V

Measuring Ranges

(Automatic change) 1.6 GΩ/100 GΩ (autoranging) (1 to 10 kV variable)

100 MΩ (1000 V)

First Effective Measuring Ranges 0.05 to 50 GΩ (1 to 10 kV variable)

1 to 100 MΩ (1000 V)

Accuracy ± 10% rdg

Other Ranges Accuracy ±1% of scale length

Output Voltage and

Set Voltage Indicate DC: 0 to 10 kV

±2%rdg±2dgt

Withstand Voltage 5000 V AC for 1 minute

Power Source 8 x Ni-Cd rechargeable battery (1.2 V)

Dimensions 7.87 x 5.51 x 3.15" (200 x 140 x 80 mm)

Weight Approx. 3.3 lb (1.5 kg)

What's included with the Kyoritsu 3124A

High Voltage Insulation Tester

Lead for Recorder

Lead for Battery Charging

Earth and Guard Leads

Battery Charger

Hard Carrying Case

8 x Ni-Cd Rechargeable Batteries

Instruction Manual
